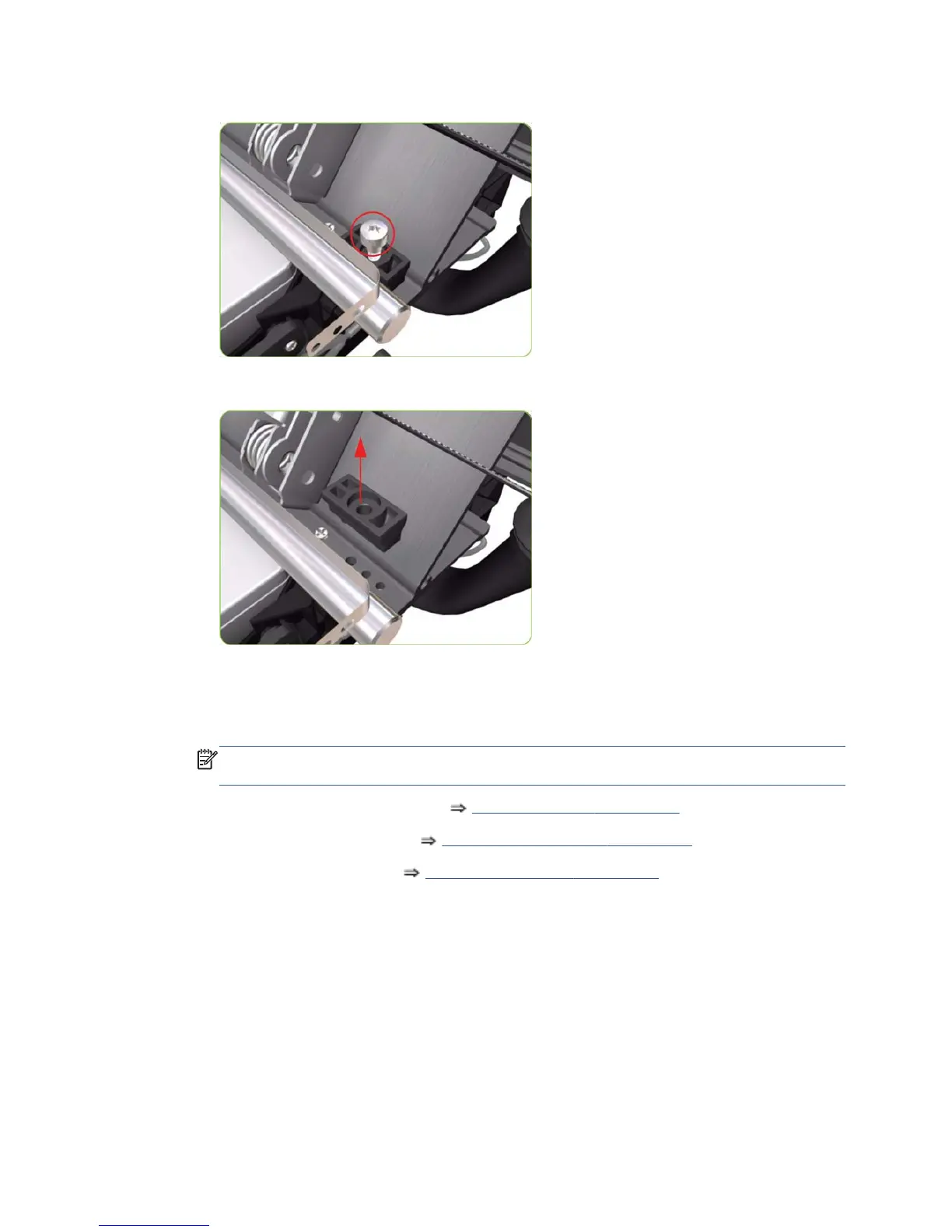

22. Remove the Carriage Stopper Screw (T-20) from the Chassis.
23. Remove the Carriage Stopper from the printer.
24. Slide the Carriage (including the belt) to the right and out of the printer.
25. If the Carriage is to be replaced, make sure that you remove the Belt, the Carriage PCA, Encoder
and Line Sensors and the Cutter (in order to install them on the new Carriage).
NOTE: After installing the new Carriage, make sure you perform the following Service Utility
and Calibrations:
●
Reset life counter Carriage ME
Reset Life Counters on page 112.
●
Drop Detector Calibration
Drop Detector calibration on page 127.
●
Line Sensor Calibration
Line Sensor calibration on page 129.
