HP DESIGNJET T7100 Monochrome Series

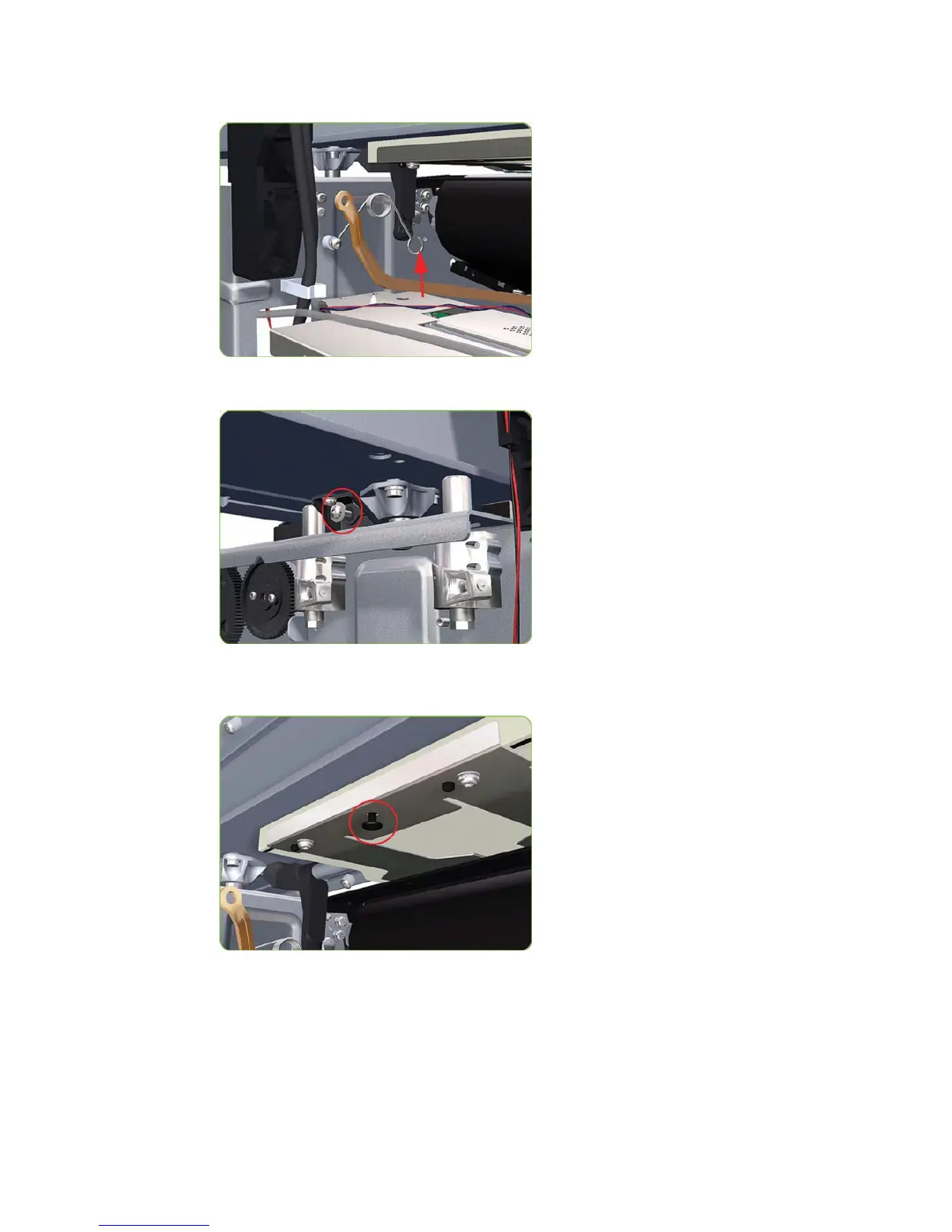

5. Disconnect the spring from the Pinch Wheel cam-arm.
6. Remove one T-20 screw that secures the Cam to the Cam Lever.
7. Insert a plastic stud into each Pinchwheel Subassembly (the Plastic Studs can be found in the
replacement Pinchwheel Assembly kit).
ENWW
Disassembly order
405
