HP DESIGNJET T7100 Monochrome Series

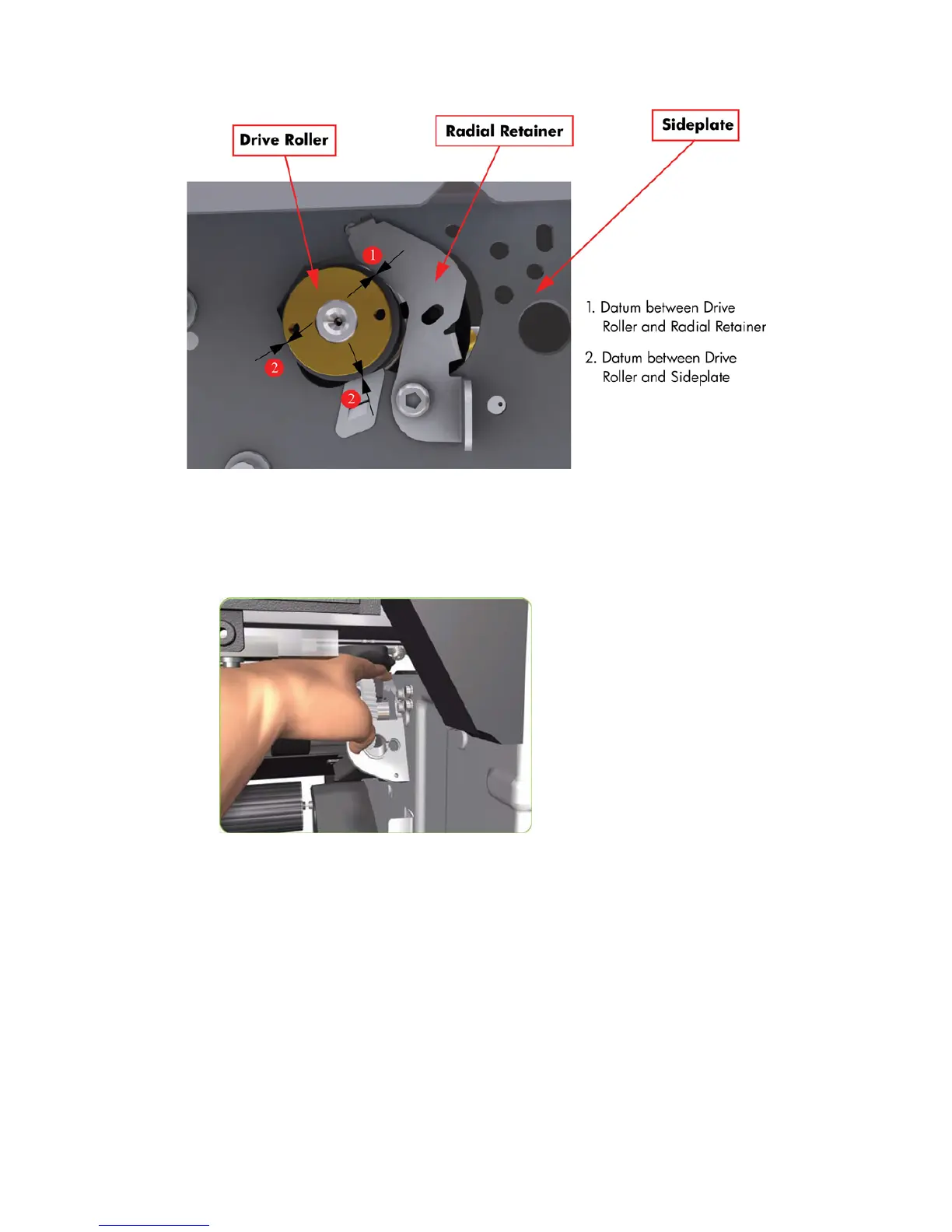

Figure 9-2 Right-Hand Side of the printer
To make sure that ALL the datums are met when installing the Media-Axis Motor Bracket, make sure you
follow these
1. Place the Media-Axis Motor Bracket in the correct position on the printer. Make sure you keep it
pushed down (as shown in the illustration) until the first screw has been installed and fully
tightened.
ENWW
Disassembly order
413
