Installation of the Drive Roller
When installing the Drive Roller, several different datums have to be met in order to ensure that the

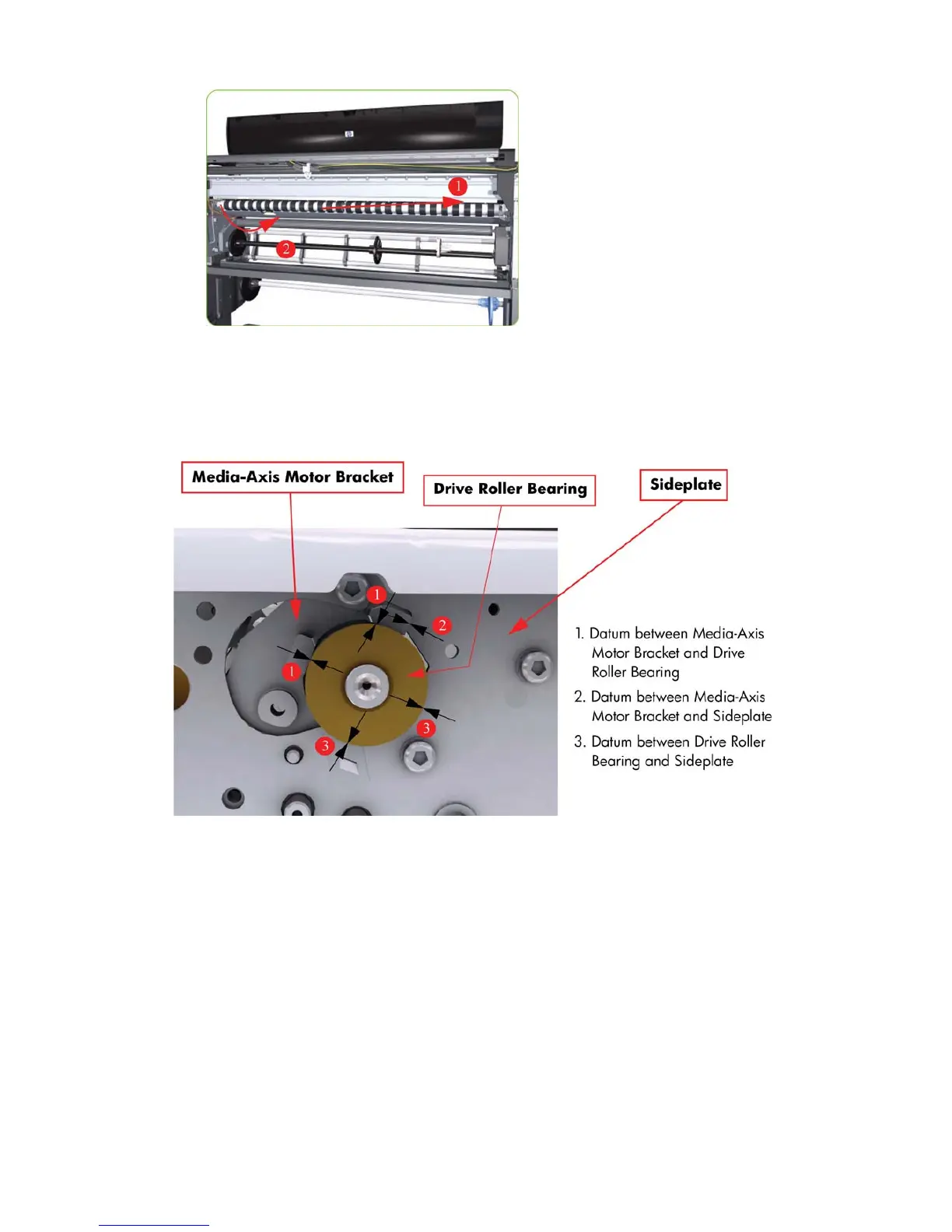

Drive Roller has no axial play. Use the following illustrations to ensure that ALL the datums are met:
Figure 9-1 Left-Hand Side of the printer
