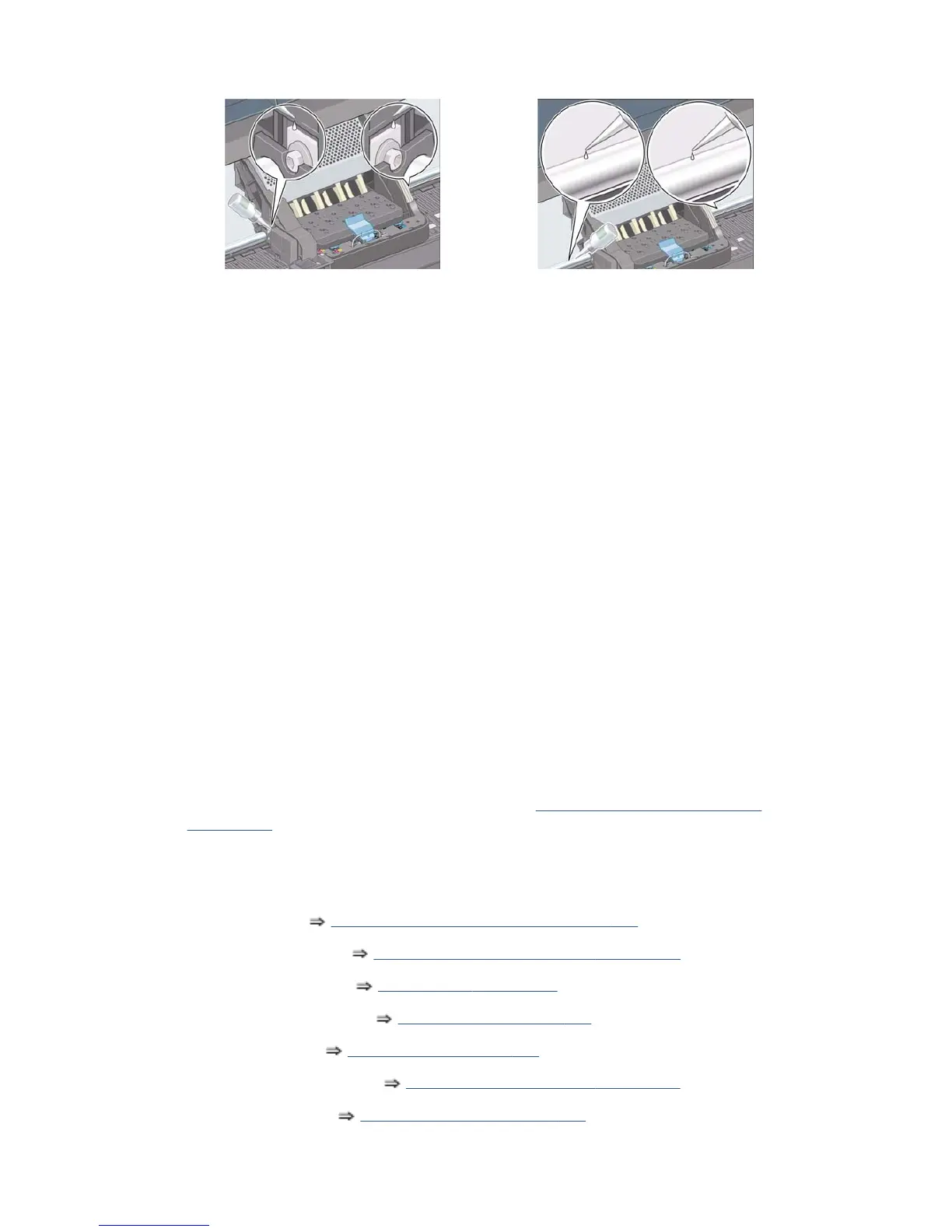

Scheduled maintenance
In some segments of the printer market, the customer tends to print more than the maximum number of
prints that the throughput allows, exceeding by far the limit of the design. When this happens the
customer runs into print quality problems and continuous printer failures.
The purpose of scheduled preventive maintenance is to avoid these failures - ensuring a good
performance during all the product life.
Preventive Maintenance Kits
Normal printer use means 6,000,000 Carriage Cycles (which corresponds to approximately 100,000
A0 prints on average). Under normal usage conditions, it will be approximately 5 years before the
printer needs maintenance. If the printer is used more heavily than normal, then it will need
maintenance service much more frequently.
One of the EEROM counters is assigned to counting the number of carriage cycles. When certain
components of the printer exceed this amount, the front panel displays the following message:
“Maintenance #1 required”
The following message is triggered depending on the total quantity of ink spitted in each Spittoon.
“Maintenance #2 required”
Once one of the maintenance advised messages is displayed, the preventive maintenance kit must be
used to replace the most worn parts of the printer. See
Printer part removal and installation
on page 216.
Preventive Maintenance Kit #1
This Preventive Maintenance Kit #1 contains the following components:
●
Encoder Strip
Encoder Strip and Encoder Sensor on page 294
●
Encoder spring+Nut
Encoder Strip and Encoder Sensor on page 294, step 8
●
Carriage PCA Cover
Carriage PCA on page 290
●
Belt Tensioner Assembly
Scan-Axis Motor on page 321, step 7
●
Cutter Assembly
Cutter Assembly on page 341
●
Redial Retainer Assembly
Installation of the Drive Roller on page 412
●
Line Sensor Cable
Line Sensor Assembly on page 298
ENWW
Scheduled maintenance
471
