The front panel display shows “PH replacement not complete”
The printhead is rejected and some ink tubes are not filled: Yellow and Matte Black are missing, or Cyan,
Magenta, Gray, and Photo Black are missing.
1. Perform Prerequisites (Firmware upgrade, moisturize septums).
2. For Printers prior to May 2014 (for T3500 go to 3.3).
Visually check if there are empty tubes:
a. Open the carriage.

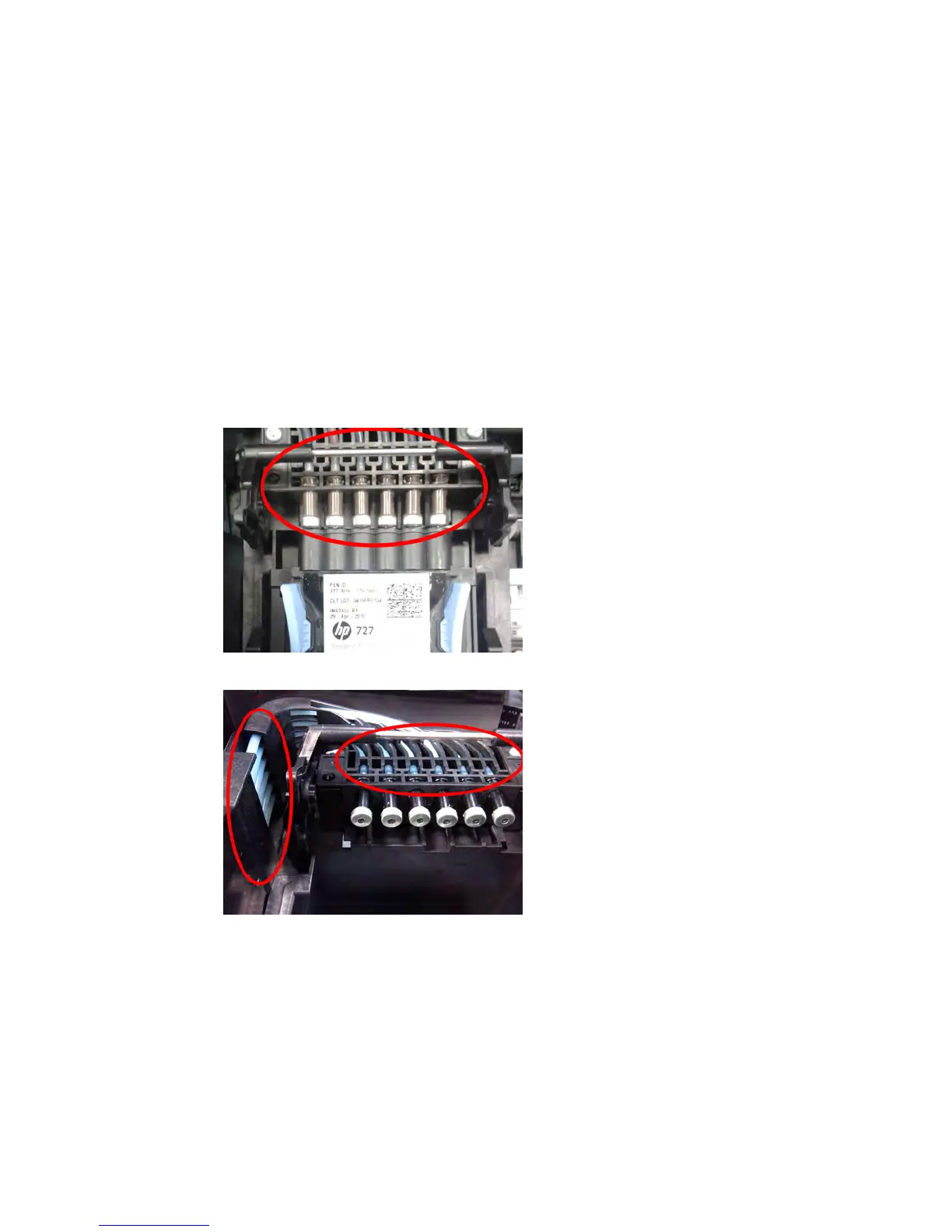

b. Check the end of the tubes. They should appear as shown in the picture below. The rest of the ink
circuit can be checked for bubbles and ink. When the tubes are empty, they will have a bluish color.
When filled, the tubes will look darker and the yellow channel will have a slight magenta color (due
to the combination of ink color and tube color).
Filled tubes:
Empty tubes:
Root Cause
●
There are two primer channels. Yellow and Matte Black share one primer channel. Cyan,
Magenta, Gray, and Photo Black share the other primer channel. If one primer fails, one of the
groups might not get filled.
●
There are 2 Ink Supply Stations, If the missing colors are grouped as they are in the Ink
Supply Station, this issue can be related to that part of the printer.
Corrective action
68 Chapter 2 Troubleshooting ENWW
