Service Calibrations

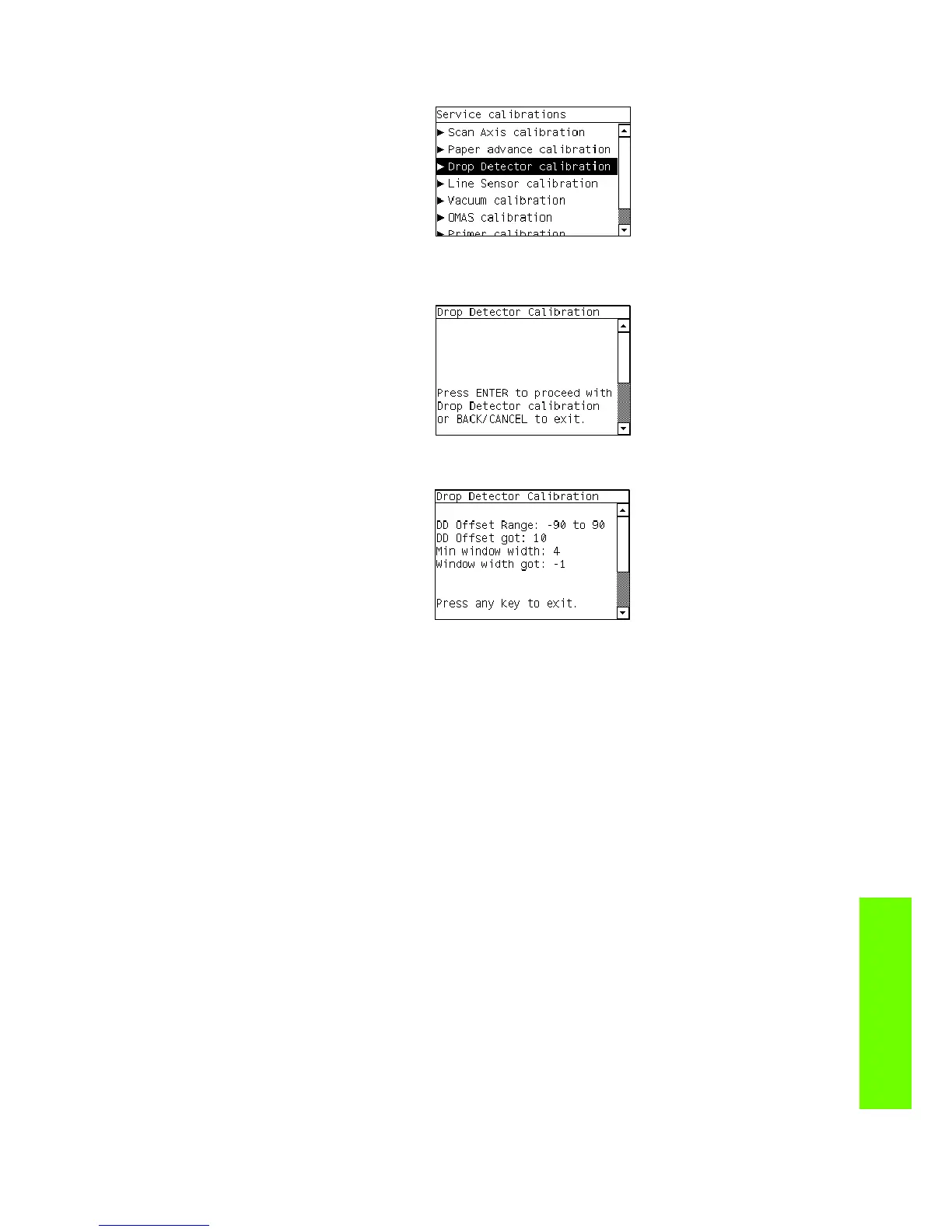

1. In the Service Calibrations submenu, scroll to “Drop Detector Calibration” and press Enter.
2. When the following message appears on the front panel, you must select whether you would like to
continue with the calibration by pressing the Enter key. Press Back or Cancel to exit the
calibration.
3. The Printer will start to calibrate the Drop Detector. Once the Drop Detector has been calibrated, the
results will be displayed on the Front Panel. Press any key on the Front Panel to finish the calibration.
4. Once the calibration is completed, OK will be displayed on the Front Panel.
4. Line Sensor Calibration
The purpose of this Service Calibration is to calibrate the intensity of the line sensor in the Carriage PCA.
An incorrect calibration can result in edge-detection failures during media loading and incorrect reading
of prints that are used for alignment or calibration.
Perform the Line Sensor Calibration whenever:
•
Edge detect procedure fails during media loading.
• Carriage is disassembled or replaced.
• Line Sensor is disassembled or replaced.
• Banding is detected in prints.
• Misalignment between colors is detected.
