HP Designjet Z6100 Printer series

Right Trim 269
Removal & Installation

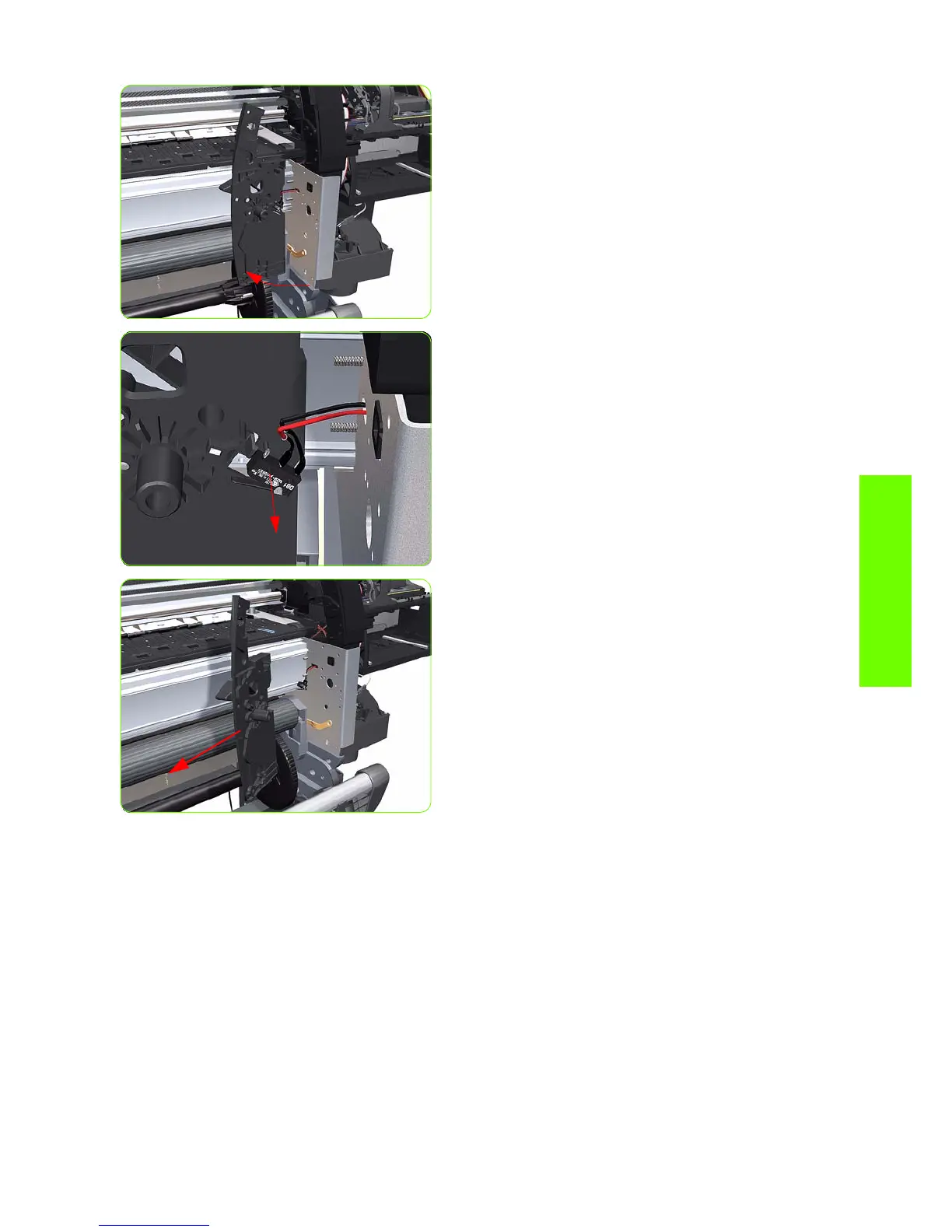

10. Carefully rotate the Right Trim sufficiently to gain access
to the Media Lever Position Sensor.
11. Unclip the Media Lever Position Sensor of its mounting
lugs on the Right Trim.
12. Remove the Right Trim from the Printer.
