318 Chapter 8 Removal & Installation
Removal & Installation
ISS to Cartridge Cables
Removal
1. Remove the Left Cover ⇒ See page 270 .

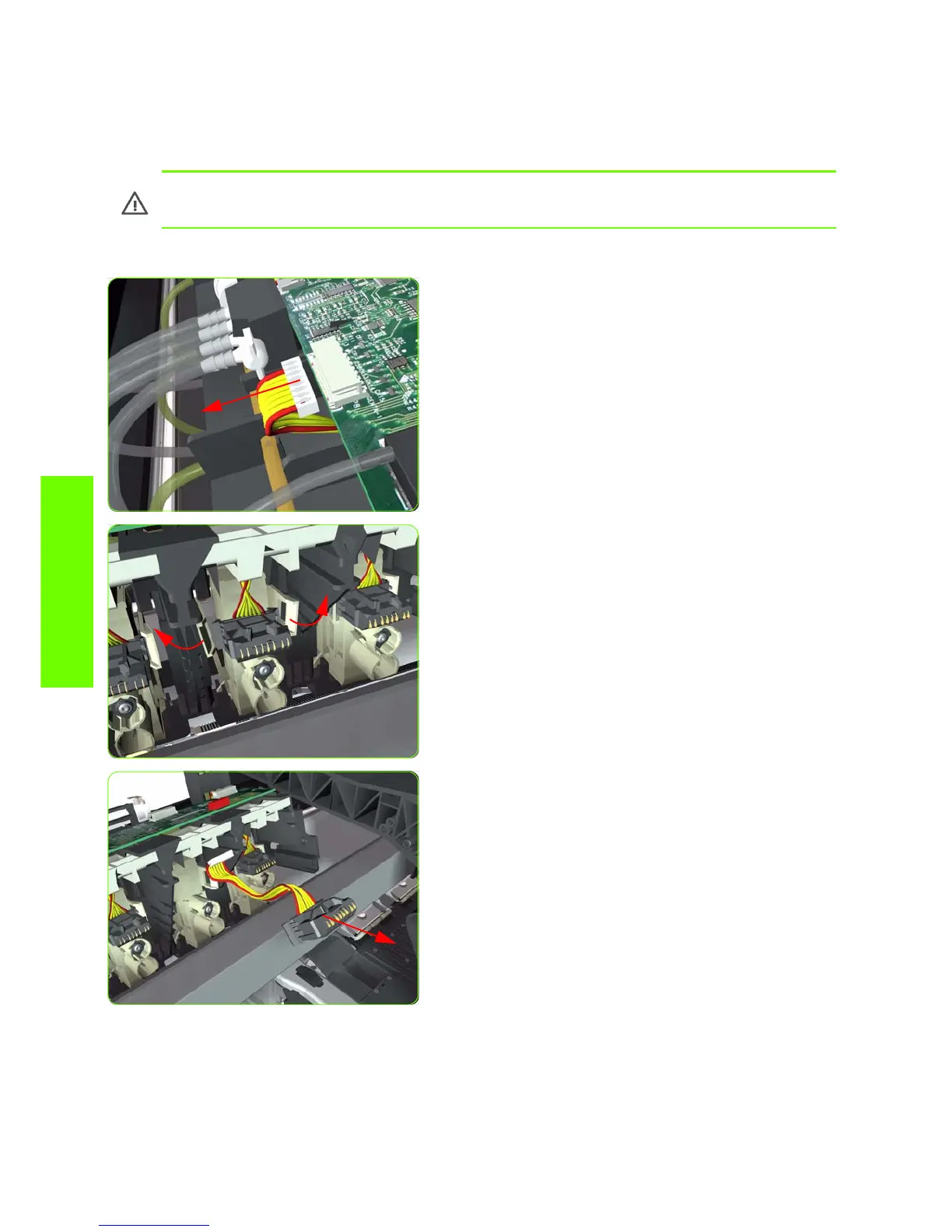

2. Disconnect the ISS to Cartridge Cable from the ISS
PCA.
3. Release the clips securing the ISS to Cartridge Cable.
4. Remove the ISS to Cartridge Cable from the Printer.
WARNING!: Switch off the printer and remove the power cable.
