HP Designjet Z6100 Printer series

Ink Supply Station (ISS) 321
Removal & Installation
Ink Supply Station (ISS)
Removal
1. Remove the Left Cover ⇒ See page 270 .
2. Remove the Scan-Axis Motor ⇒ See page 346 .
3. Remove the Left Spittoon ⇒ See page 328 .

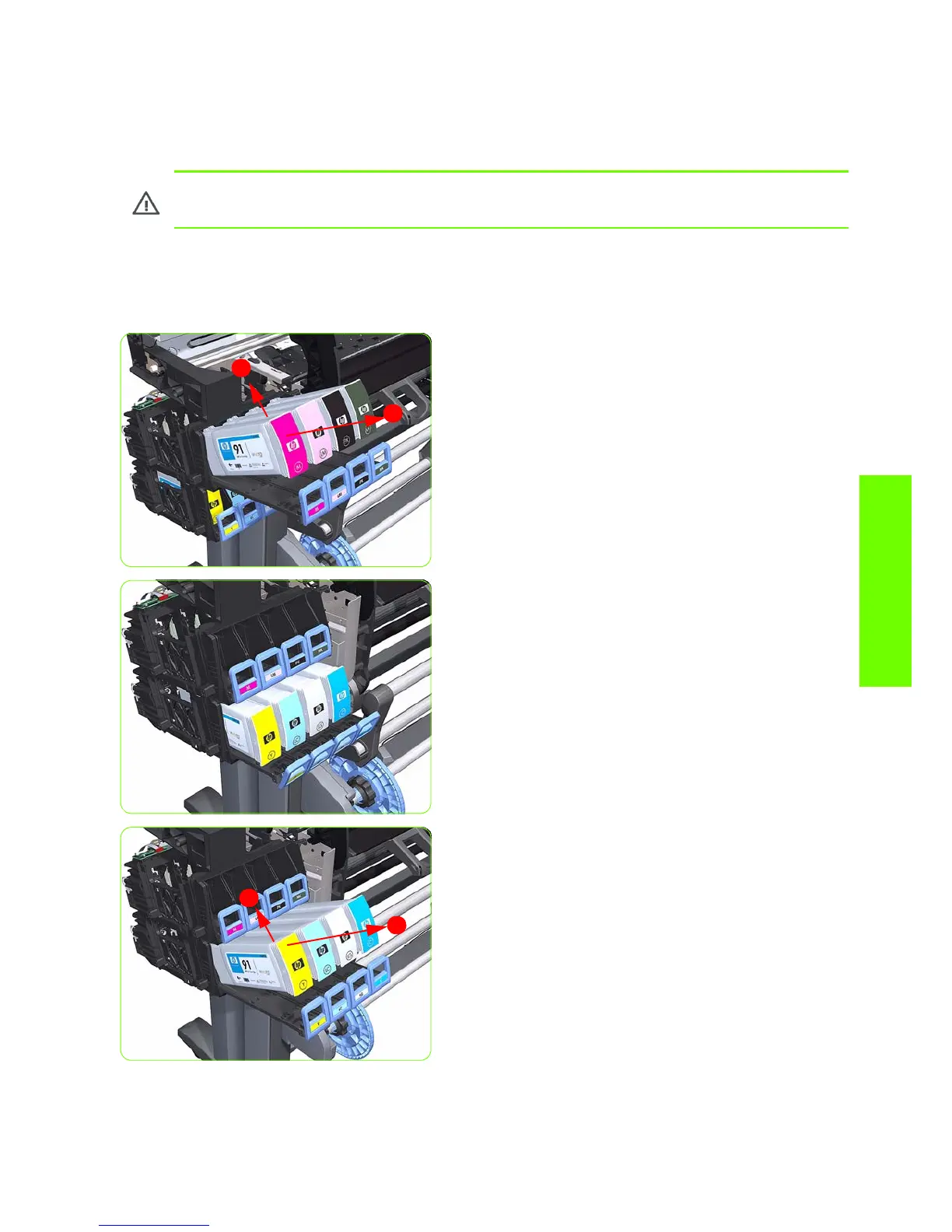

4. Pull out the top row of Cartridge Trays and remove the
Ink Cartridges.
5. Close the top row of Cartridge Trays and pull out the
bottom row.
6. Pull out the bottom row of Cartridge Trays and remove
the Ink Cartridges.
WARNING!: Switch off the printer and remove the power cable.
1
2
1
2
