372 Chapter 8 Removal & Installation
Removal & Installation

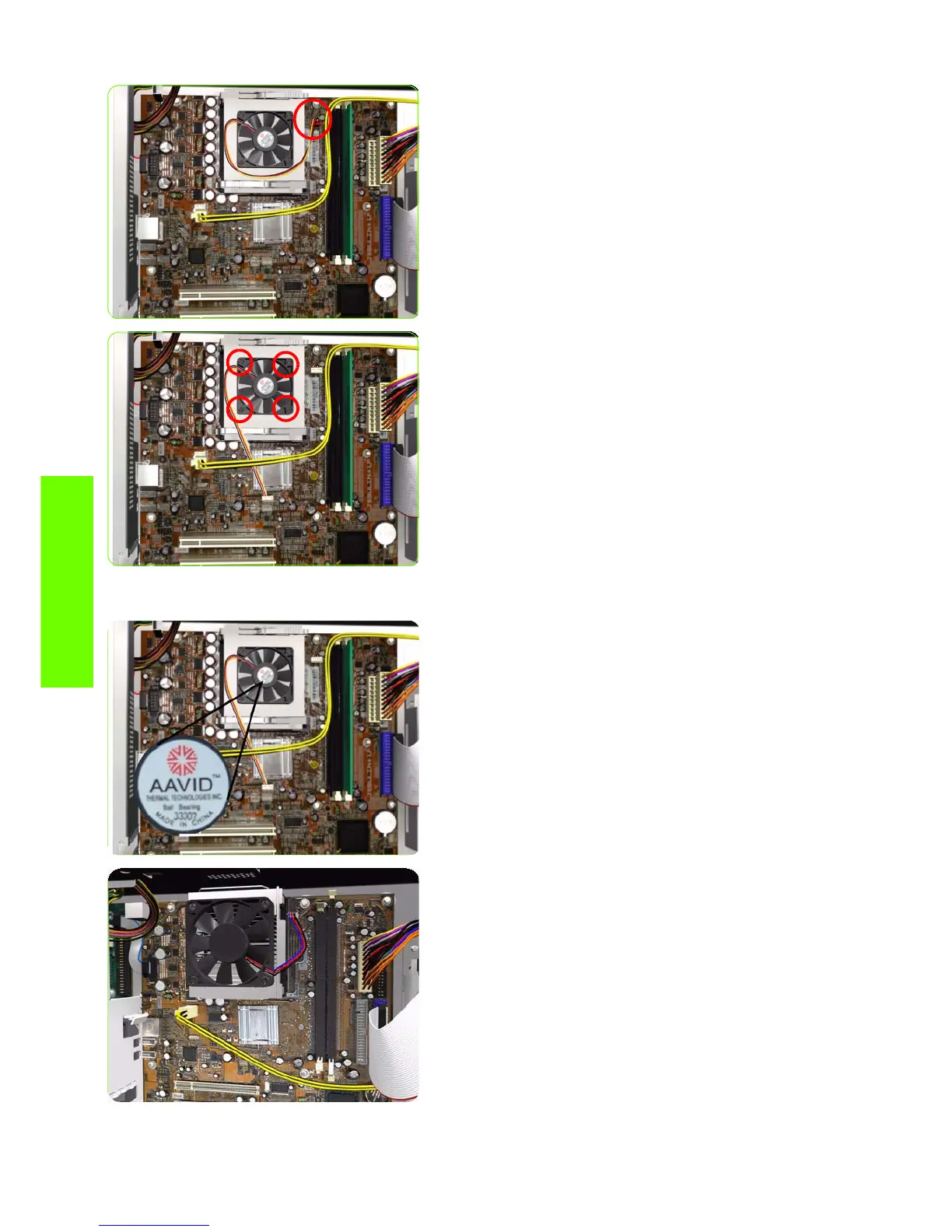

5. Disconnect the CPU Fan Cable from the Formatter PCA.
6. Remove four cross-head screws from the CPU Fan and
remove the CPU Fan.
Installation
1. When installing the new CPU Fan it is important to
ensure the correct orientation of the CPU Fan. There are
two manufactures of fan available:
AAVID Fans - AAVID Labels faces outwards when it is
installed correctly.
Delta Fans - CE Label faces inwards, towards the
printer when it is installed correctly.
