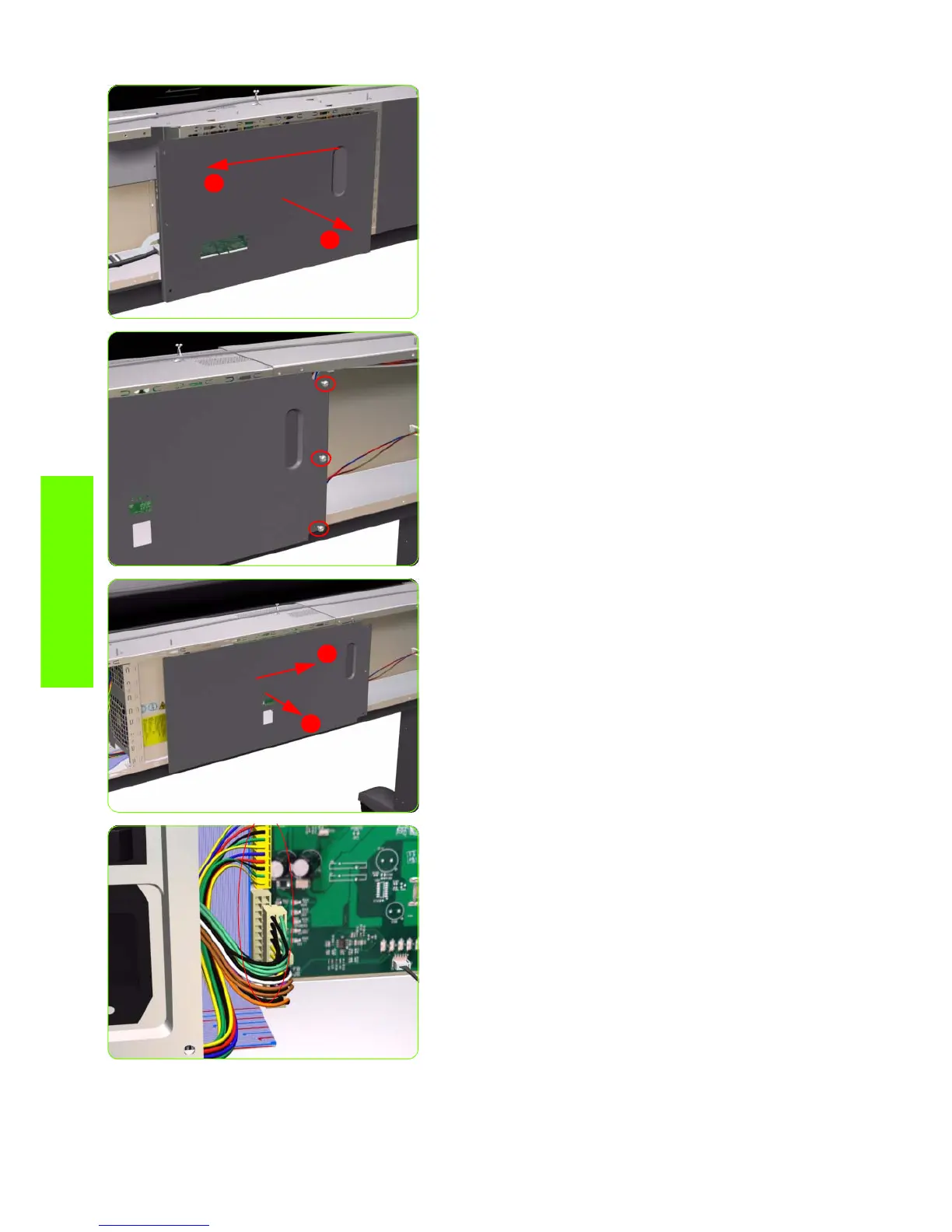

5. Remove the Main PCA Cover from the Printer.
6. Remove three T-15 screws (Type A) that secure the PSU
cover.
7. Remove the PSU Cover from the Printer.
8. Disconnect the Power Supply and Interconnect cables
from the PrintMech PCA.
