- Operational
Verification Tests
Without a Controller
A DIL switch called the Service Switch, situated beside the address
switch (see Figure
C-1 and Figure C-2), can be used to force different
startup values for the waveform, frequency and amplitude, as detailed
in Table C-3.
Service Logical Address
Snitch ,
I
, Switch
/"-
Cutaway view

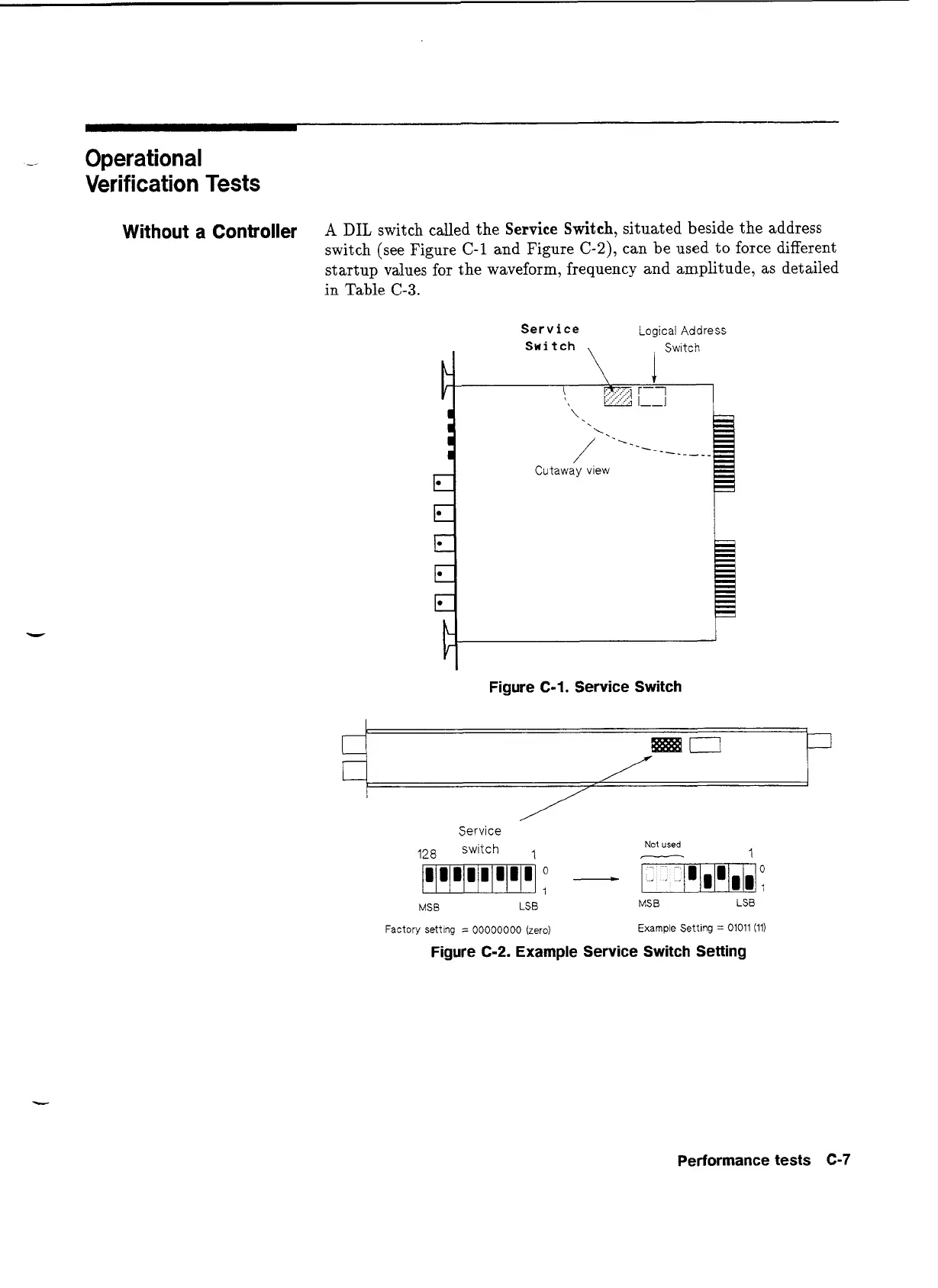

Figure C-1. Service Switch
Service
128 switch
Not used
- 1
MSB LSB
MSB LSB
Factory sett~ng = 00000000 (zero)
Example Setting = 01011 (11)
Figure C-2. Example Service Switch Setting
Performance tests
C-7
