HP Elite Dragonfly User Manual

SOP
Document No. : Empire FA Dis-assembly SOP Station :
Operation Des : Ver. : Date :
Fixture list
Qty
Fixture list
Qty
Step：
Attention︰ Pls inform the OP assistant immediately once there is any abnormal
Editor：
Publish：
Zhu Ya IE
Loose srew from the buttom case

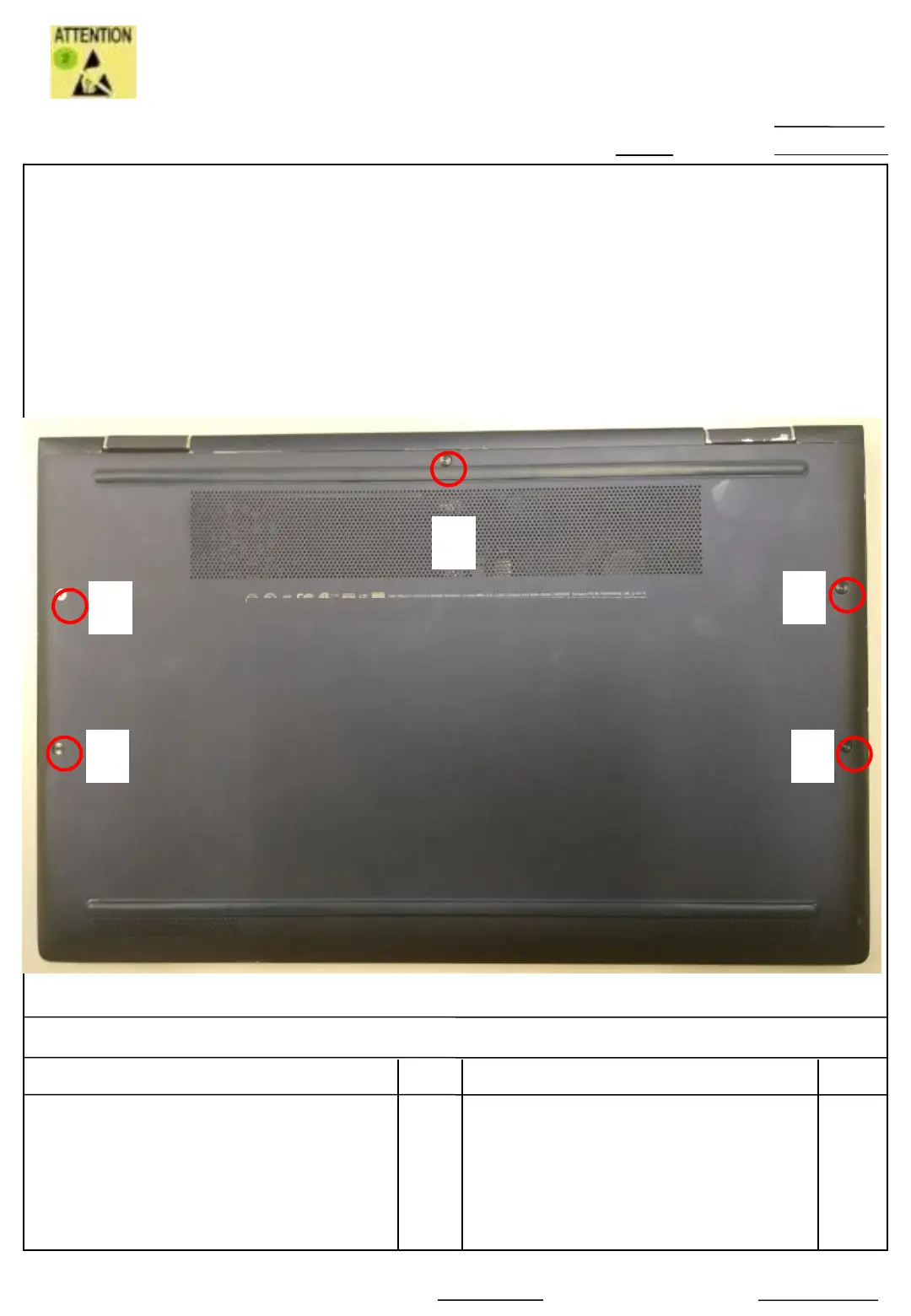

1. Loose T5 Screw (6052B0473701) *5 from the bottom case。
 Torque value：2.0 ± 0.1Kgf．cm
 The screw cannot be slipped
1(1/1)
Cross electric low speed screwdriver T5 1
1
2
3
4
5
2019/8/20
1.00

HP Elite Dragonfly Specifications

General

Form factor	Convertible (Folder)
Product type	Hybrid (2-in-1)
Product color	Black
Country of origin	China
Intel® vPro™ Platform Eligibility	No
RGB color space	NTSC
Display diagonal	13.3 \
Touch technology	Multi-touch
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Display brightness	400 cd/m²
Native aspect ratio	16:9
NTSC coverage (typical)	72 %
Display bezel technology	Micro-Edge
Display diagonal (metric)	33.8 cm
Memory slots	1x SO-DIMM
Internal memory	16 GB
Memory clock speed	2133 MHz
Memory form factor	SO-DIMM
Internal memory type	LPDDR3-SDRAM
Maximum internal memory	- GB
On-board graphics card ID	0x3EA0
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
Maximum on-board graphics card memory	32 GB
On-board graphics card OpenGL version	4.5
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1100 MHz
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	PCI Express, NVMe
Storage media	SSD
Total storage capacity	512 GB
Number of SSDs installed	1
MIMO type	Multi User MIMO
Antenna type	2x2
Bluetooth version	5.0
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
WLAN controller manufacturer	Intel
HDMI version	1.4
USB 2.0 ports quantity	0
Thunderbolt 3 ports quantity	2
Pointing device	Clickpad
Keyboard special features	Morsbestendig
Operating system architecture	64-bit
AC adapter power	65 W
Battery weight	220 g
Battery capacity	38 Wh
Sustainability certificates	ENERGY STAR
HP segment	Business
HP speaker type	HP Quad Speakers
HP Management tools	HP Driver Packs; HP System Software Manager (SSM); HP BIOS Config Utility (BCU); HP Client Catalog; HP Manageability Integration Kit Gen3
Bus type	OPI
Tjunction	100 °C
Processor cache	6 MB
Processor model	i5-8265U
System bus rate	4 GT/s
Processor family	Intel® Core™ i5
Processor socket	BGA 1528
Processor threads	8
Processor codename	Whiskey Lake
Configurable TDP-up	25 W
Processor frequency	1.6 GHz
Processor cache type	L3
Configurable TDP-down	10 W
Processor lithography	14 nm
PCI Express slots version	3.0
Processor boost frequency	3.9 GHz
PCI Express configurations	1x4, 2x2
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	1.8 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	16
Processor ARK ID	149088
Processor package size	46x24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Package depth	402 mm
Package width	137 mm
Package height	315 mm
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	197.5 mm
Width	304.3 mm
Height	16.1 mm
Weight	990 g
