HP Elite Dragonfly - Page 7

SOP
Document No. : Empire FA Dis-assembly SOP Station :
Operation Des : Ver. : Date :
Fixture list
Qty
Fixture list
Qty
Step：
Attention︰ Pls inform the OP assistant immediately once there is any abnormal
Editor：
Publish：
Zhu Ya IE

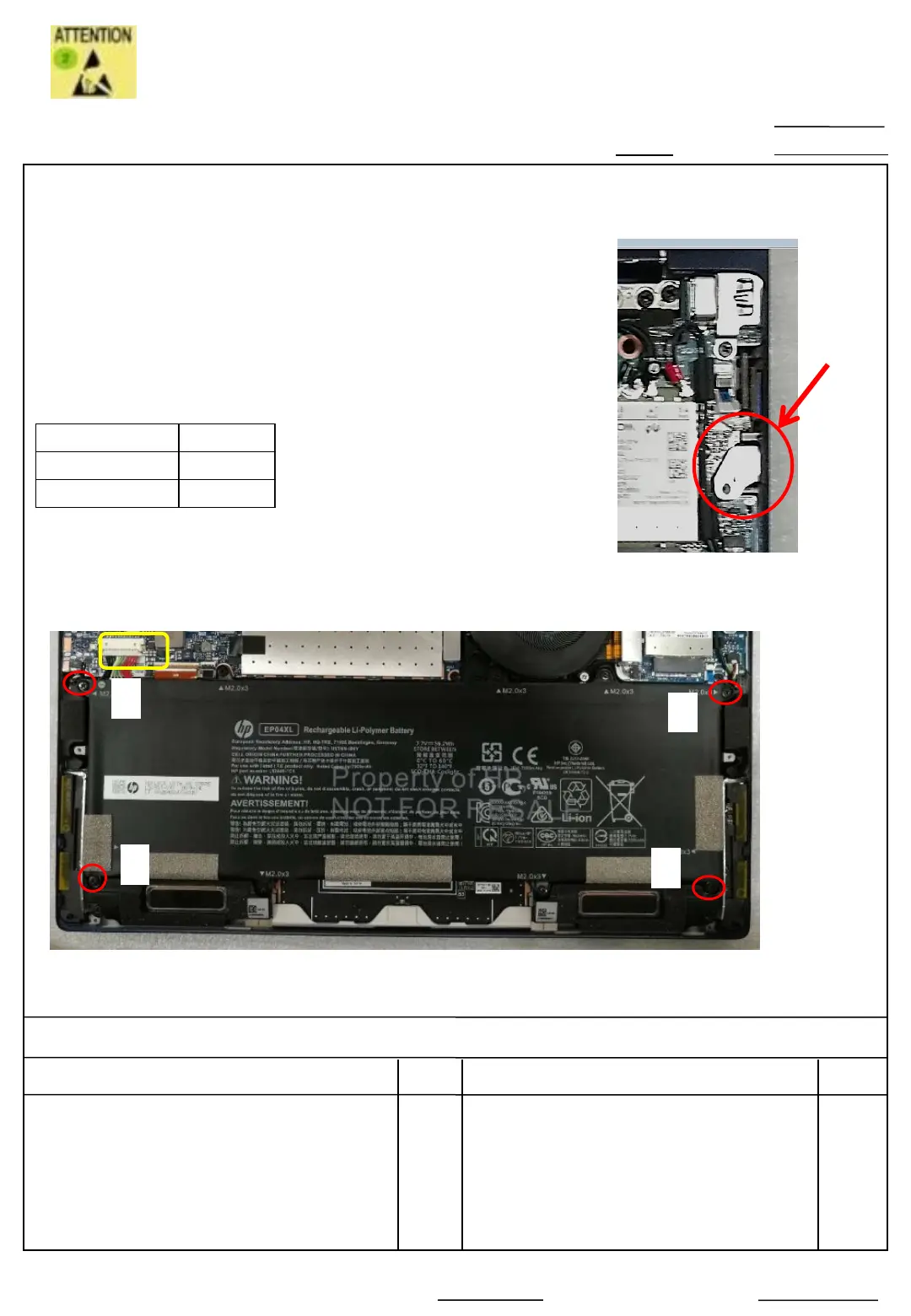

1. Loose battery screw(6052B0185401) 1、2、3、4
 Torque value1.5 ± 0.2Kgf．Cm
 The screw cannot be slipped and should not fall into the machine.
2. Disassemble battery CNTR, Recycle battery
 Pull out the CNTR horizontally
3. Recycle K-LOCK（6053B1668401）
4(1/1)
Loose screw , disassemble battery
Cross electric low speed screwdriver #0 1
1
2
3
4
6027B0160901 4cell,56W
6027B0160601 4cell,56W
6027B0162901 2cell,38W
K-lock
2019/8/20
1.00
