Notes : If finding anything uncommon, notice foreman or assistant at once.
Standard Operation Procedure
Document No. : Slice FA Disassembly SOP Station :
Operation name : Ver. : Date :
Holding fixture list (holding fixture standard)
Qty
Holding fixture list (holding fixture standard)
Qty
Step：
Issue Dept.：Auditor：
Stanley Chen
NPSU-PPE

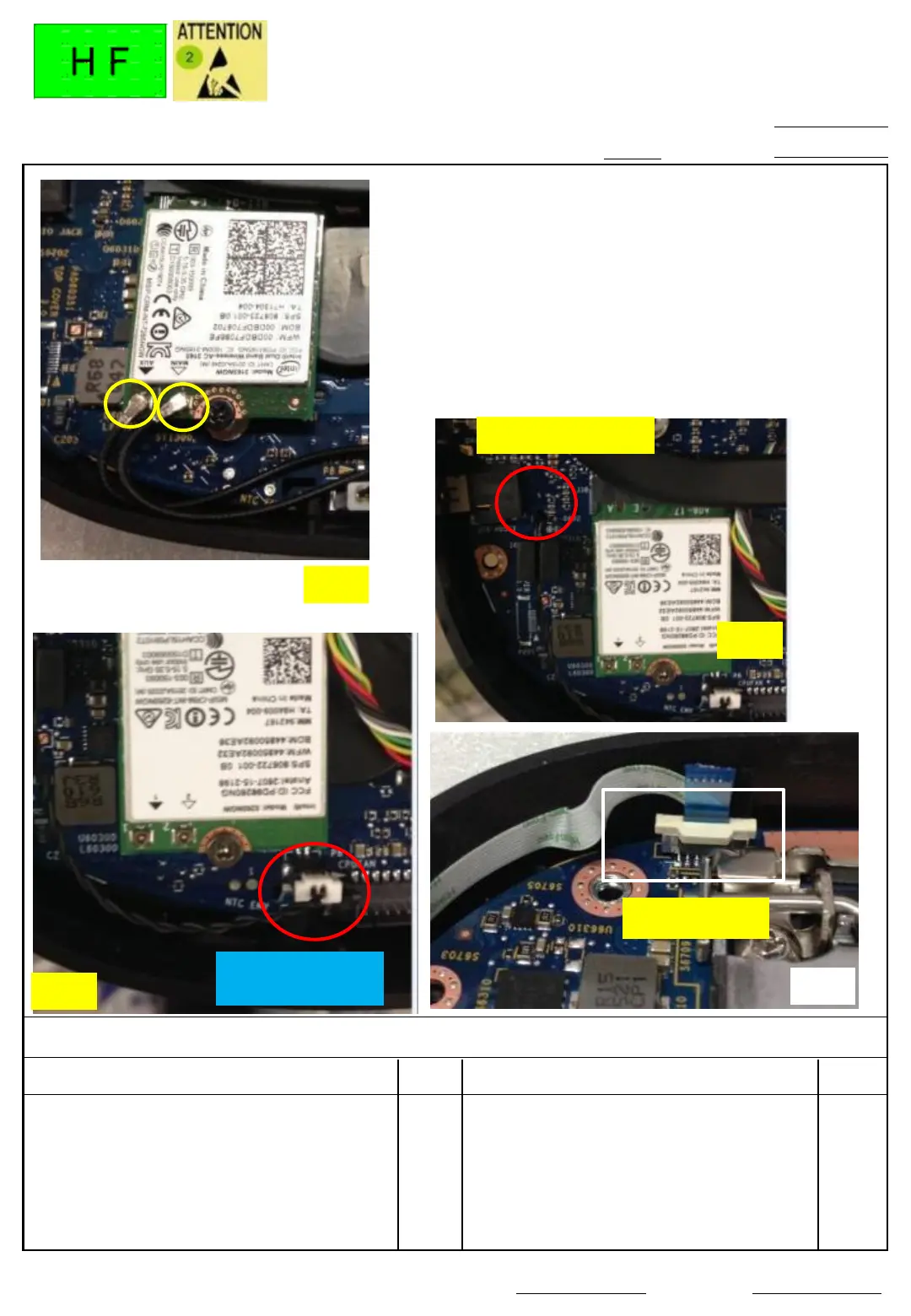

1. Disassembly antenna plug *2 from WLAN
card(Fig.1)
2. Disassembly thermal sensor connector
from M/B . (Fig.2) . Pick up sensor module
from rubber (Fig.3) ,and put it in the box .
3. Disassembly finger print FFC connector
from M/B (Fig.4).
Disassembly antenna plug ,thermal sensor
9(1/1)
0.10
2016/6/29
图一
Thermal sensor
connector
图二
图三
Support Rubber
F/G CNTR
图四
To Next Page
