Notes : If finding anything uncommon, notice foreman or assistant at once.
Standard Operation Procedure
Document No. : Slice FA Disassembly SOP Station :
Operation name : Ver. : Date :
Holding fixture list (holding fixture standard)
Qty
Holding fixture list (holding fixture standard)
Qty
Step：
Issue Dept.：Auditor：
Stanley Chen
NPSU-PPE
1. Disassembly antenna cover *2 on the
middle frame , and put them in the box .
(Fig.1 )
2. Loosen WLAN card screw (6052B0118301)
*1 . (Fig.2)
Torque ：2.0 ± 0.2 Kgf．cm
3. Disassembly WLAN card , and put it in the
box .
Only for M2 SSD model .
1 . Loosen SSD screw (6052B0118301) *1 .
(Fig.2)
Torque：2.0 ± 0.2 Kgf．cm
2. Disassembly SSD card from M/B ,and put it
in the box .
Disassembly WLAN card, SSD, antenna
10(1/1)
0.10
2016/6/29

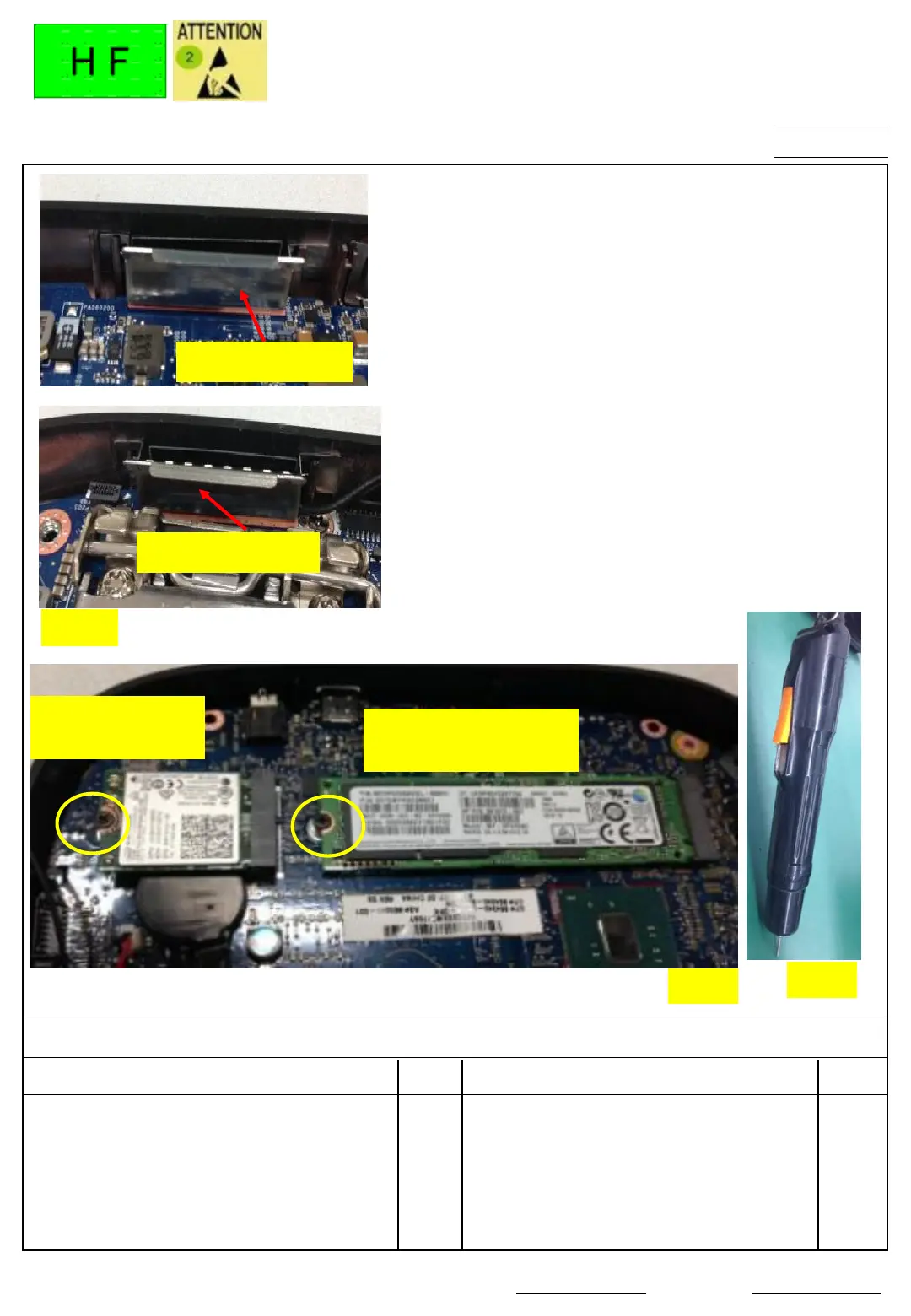

Fig.2
WLAN
M2 SSD
Cross electrical screw driver#1 1
Aux antenna
Fig.1
Main antenna
Fig.3
To Next Page
