Notes : If finding anything uncommon, notice foreman or assistant at once.
Standard Operation Procedure
Document No. : Slice FA Disassembly SOP Station :
Operation name : Ver. : Date :
Holding fixture list (holding fixture standard)
Qty
Holding fixture list (holding fixture standard)
Qty
Step：
Issue Dept.：Auditor：
Stanley Chen
NPSU-PPE
14(1/1)
Disassembly Finger module
With Finger model
1. Loosen screw (6052B0118301)*1 (Fig.1)
Torque：2.5 ± 0.2 Kgf．cm
2. Disassembly finger iron parts
(6053B1309101), and put it in the box .(Fig.2)
3.Disassembly Finger module and FFC
(6035B0158301), and put Finger &FFC in the
different box (Fig.3)
Without finger model
1. Loosen screw(6052B0118301)*1 (Fig.4)
Torque：2.5 ± 0.2 Kgf．cm
0.10
2016/6/29
Cross electrical screwdriver #0 1

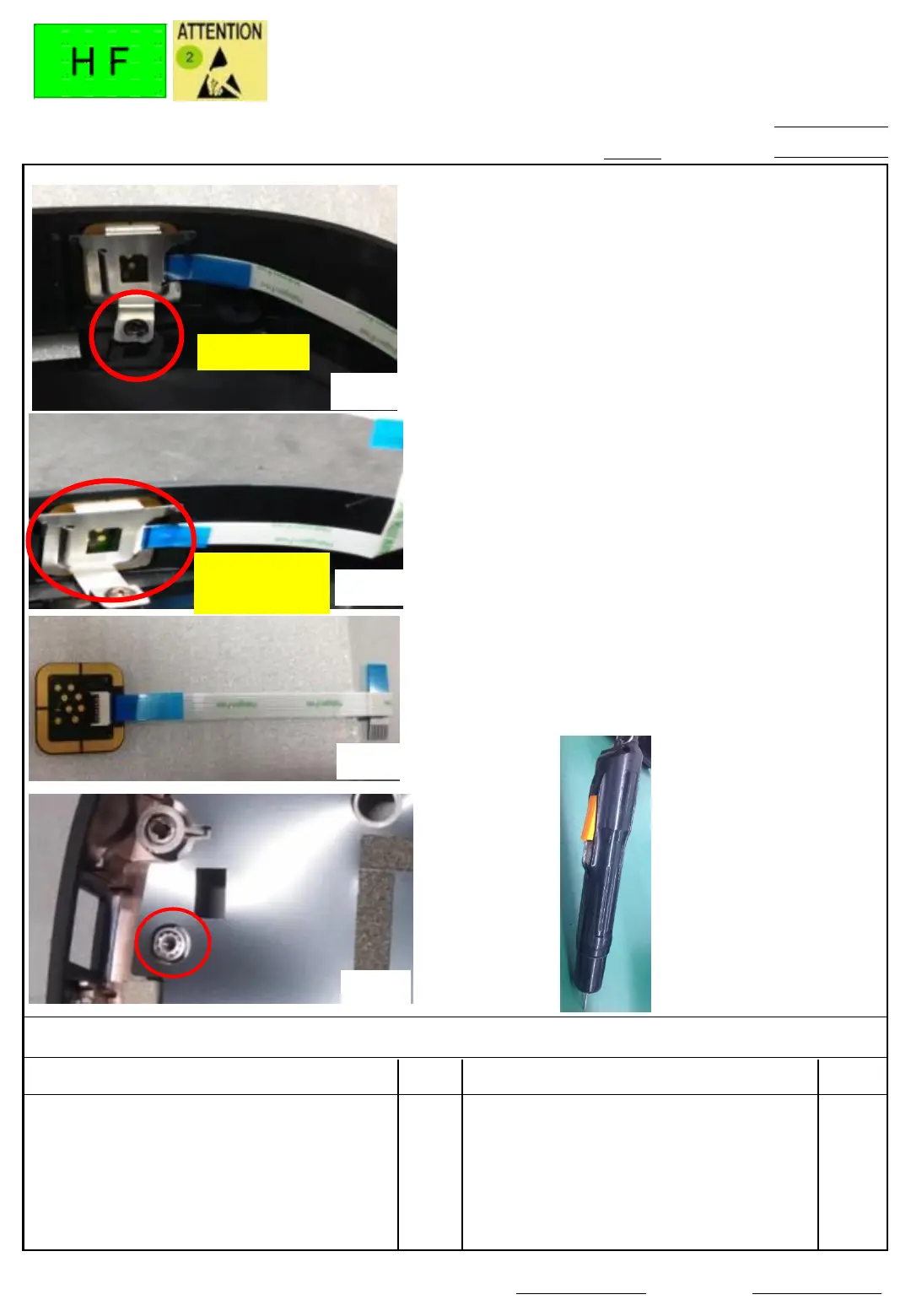

Fig.1
Screw
Fig.3
finger iron
parts
Fig.2
Fig.4
Fig.5
To Next Page
