Notes : If finding anything uncommon, notice foreman or assistant at once.
Standard Operation Procedure
Document No. : Slice Audio FA Disassembly SOP Station :
Operation name : Ver. : Date :
Holding fixture list (holding fixture standard)
Qty
Holding fixture list (holding fixture standard)
Qty
Step：
Issue Dept.
Auditor：
Stanley Chen
NPSU-PPE

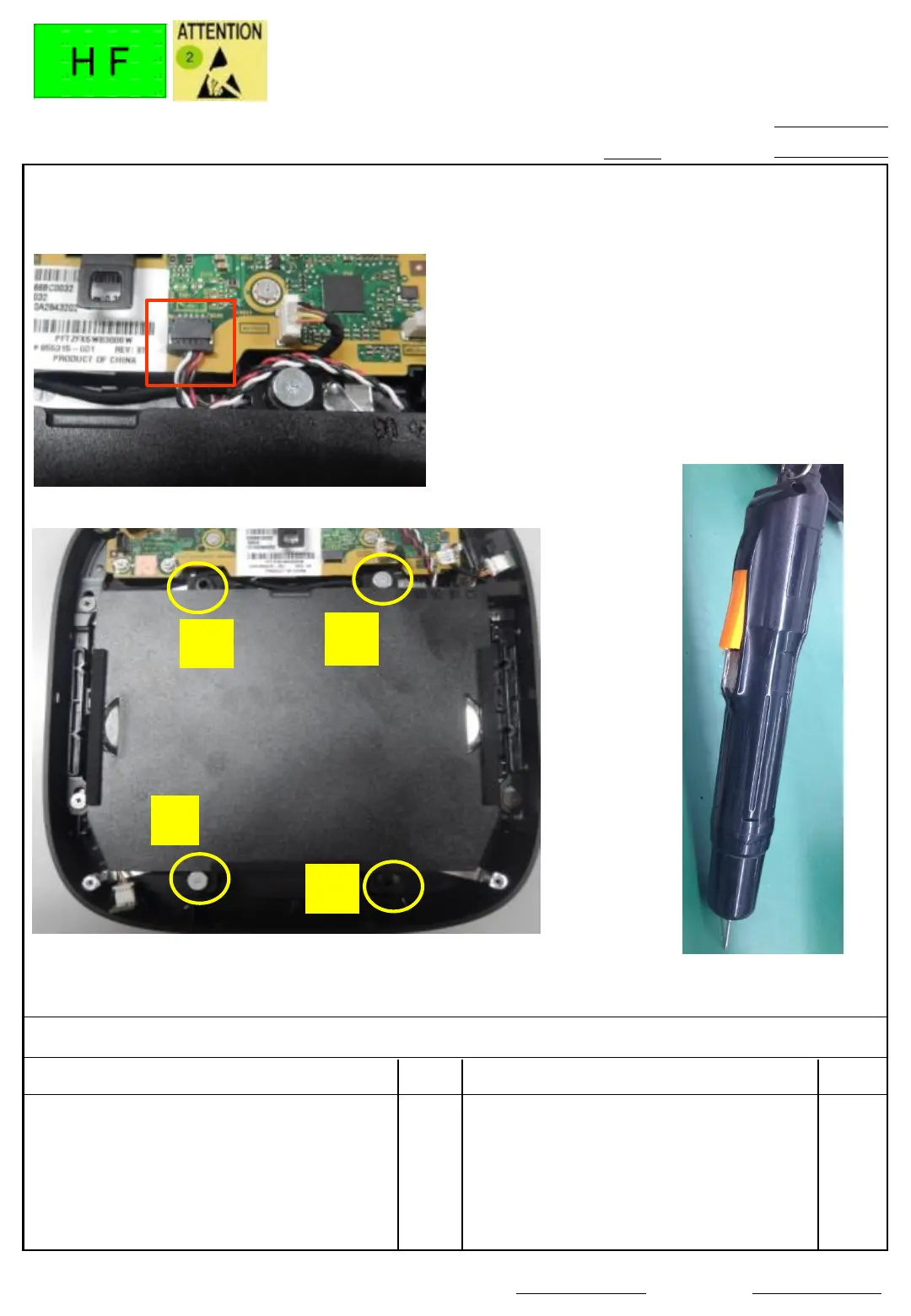

1. Disassembly speaker connector and
Audio /B FFC from ODD/B (Fig.1)
2. Loosen Speaker screw
(6052B0362401)*2(Fig.2)
Torque：2.5 ± 0.2 Kgf．cm
3. Disassembly Speaker (6039B0082301), and
put it in the box .
Disassembly Speaker
3(1/1)
0.10
2016/6/29
Fig.1
3
4
2
1
Cross electrical screwdriver #1 1
Fig.2
Fig. 3
To Next Page
