Notes : If finding anything uncommon, notice foreman or assistant at once.
Standard Operation Procedure
Document No. : Slice FA Disassembly SOP Station :
Operation name : Ver. : Date :
Holding fixture list (holding fixture standard)
Qty
Holding fixture list (holding fixture standard)
Qty
Step：
Issue Dept.：Auditor：
Stanley Chen
NPSU-PPE

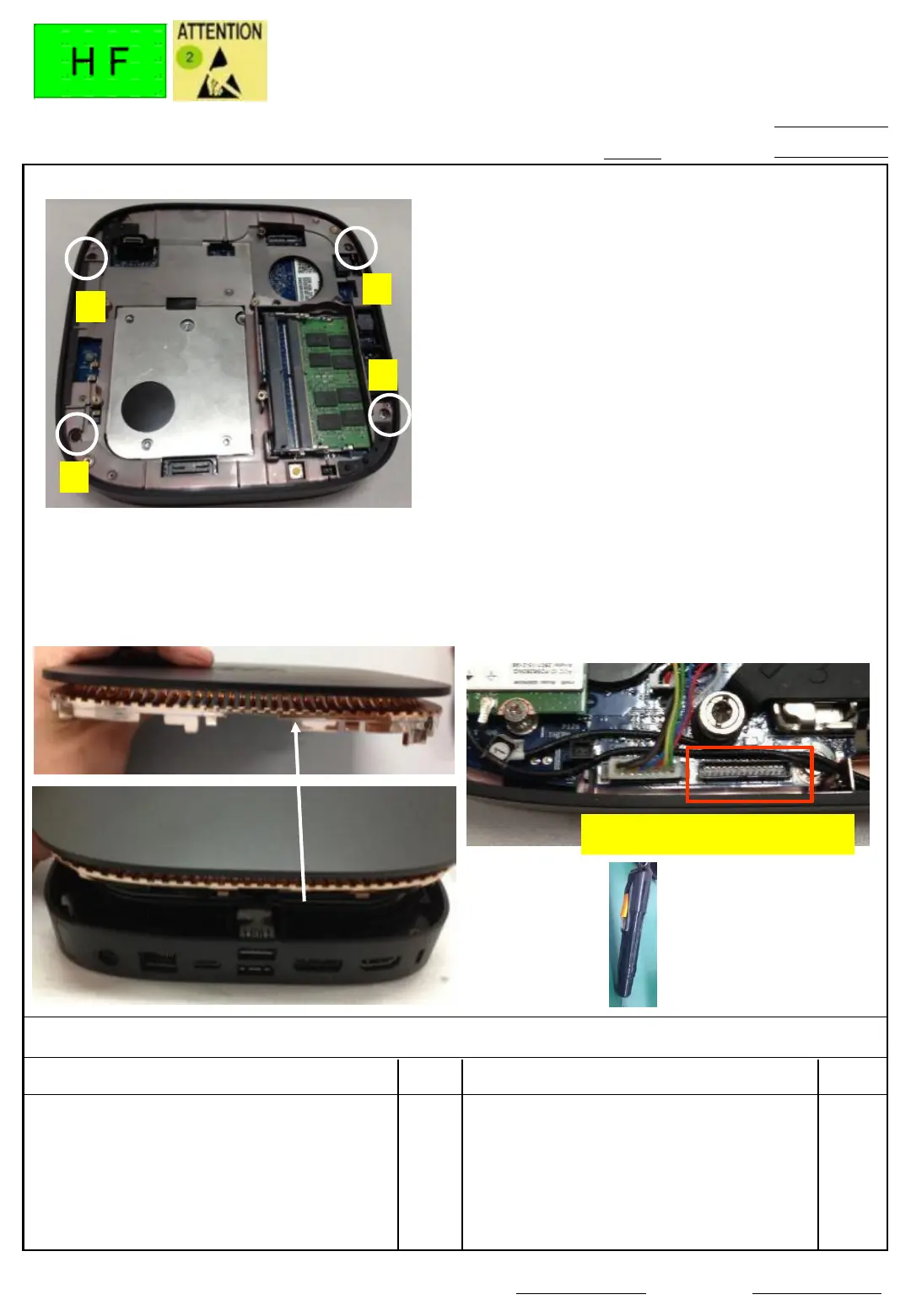

1. Loosen screw *4 of the middle frame (Fig.
1)
Torque：3.0 ± 0.2 Kgf．cm
2. Turn over the machine , and disassembly
top case . (Fig.2)
3. Only for Touch model
Disassembly cable (6017B0773101)
connector on touch/B , and disassembly
the other side connector on M/B . Put the
cable in the box . (Fig.3)
4. Only for charger model
Disassembly cable connector on touch/B ,
and disassembly the other side connector
on M/B . Put the cable in the box . (Fig.3)
Disassembly top cover
5(1/1)
0.10
2016/6/29
Cross electrical screw driver #1 1
4
1
3
2
Fig.2
Fig. 1
Touch ,charger CNTR
Fig. 3
Fig.4
To Next Page
