Notes : If finding anything uncommon, notice foreman or assistant at once.
Standard Operation Procedure
Document No. : Slice FA Disassembly SOP Station :
Operation name : Ver. : Date :
Holding fixture list (holding fixture standard)
Qty
Holding fixture list (holding fixture standard)
Qty
Step：
Issue Dept.：Auditor：
Stanley Chen
NPSU-PPE
1
4
3
2
Thermal
cover

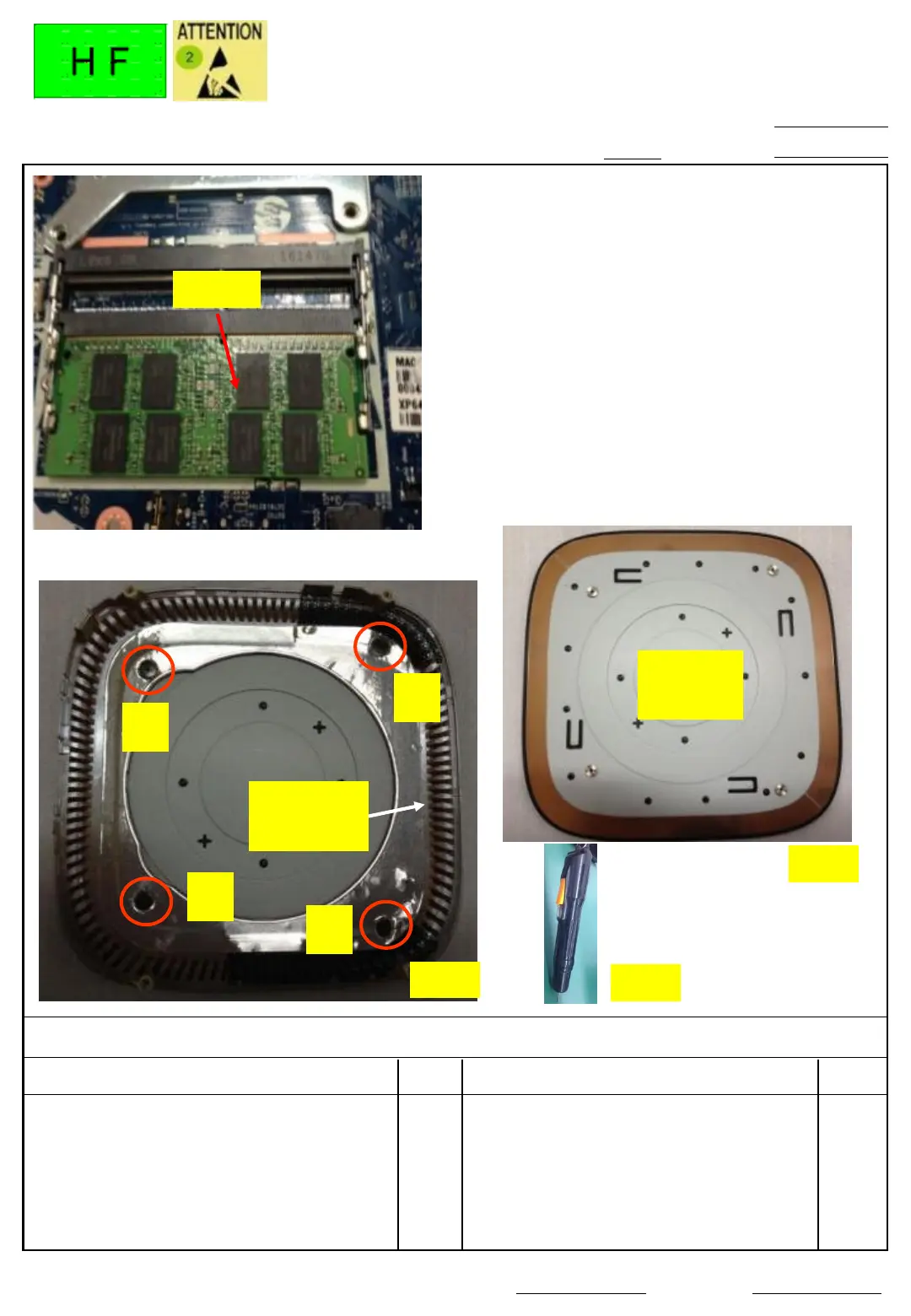

1. Disassembly DDR from the M/B , and put
it in the box .(Fig.1)
The numbers of DDR disassembly is base
on it on the M/B .
2. Loosen thermal cover
screw(6052B0156301) *4 (Fig.2)
Torque：2.0 ± 0.2 Kgf．cm
3 . Put top cover & thermal cover
(6070B1042401) in the different box.
Disassembly DDR & thermal cover
6(1/1)
0.10
2016/6/29
Cross electrical screw driver #1 1
Fig.2
Top
cover
Fig.3
Fig.1
DDR
Fig.4
To Next Page
