b.

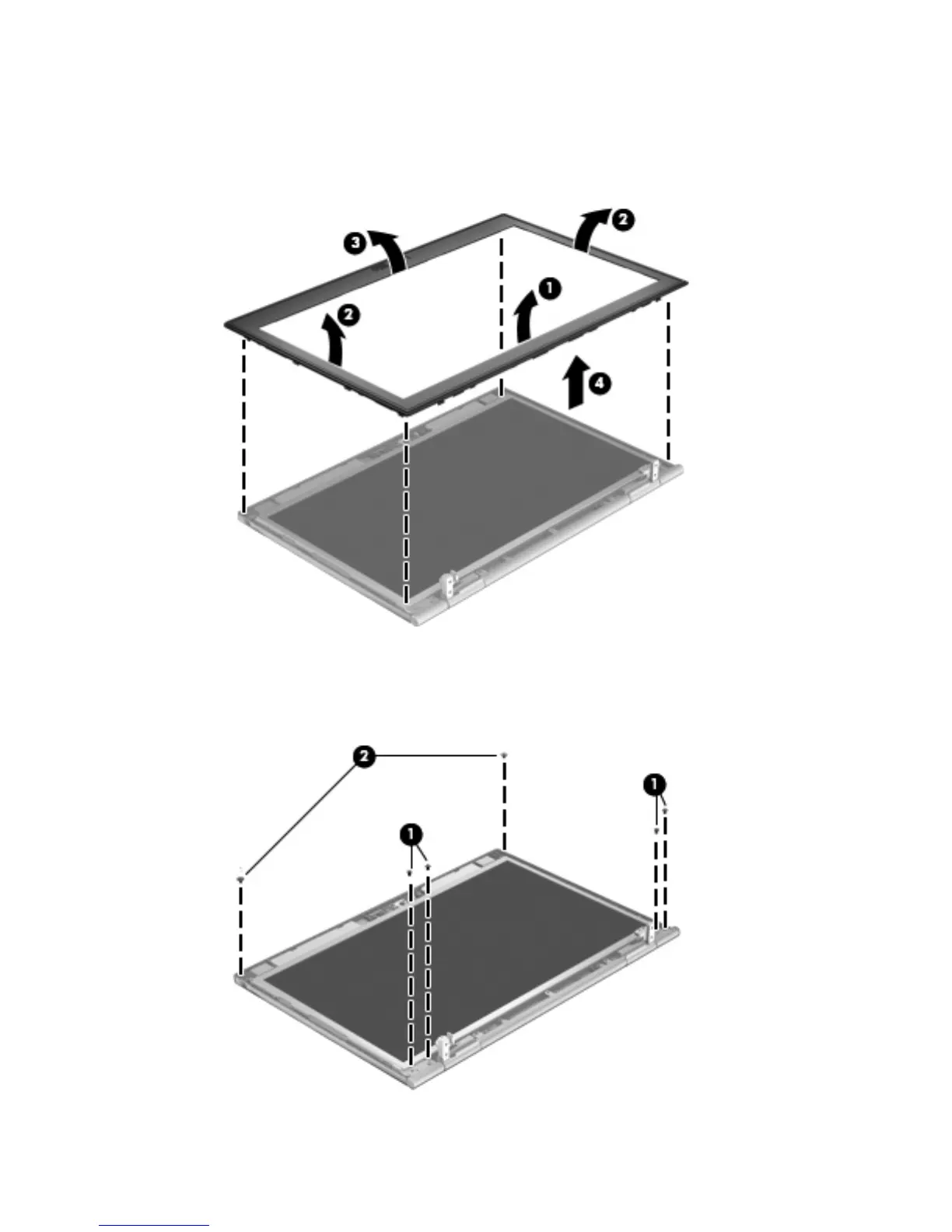

Remove the display bezel (4).
The display bezel is available using spare part numbers 685411-001 (for use on computer
models equipped with a webcam) and 685412-001 (for use on computer models not
equipped with a webcam).
2. If it is necessary to replace the display panel:
a. Remove the four Phillips PM2.5×5.0 screws (1) and the two Phillips PM2.0×2.5 screws (2)
that secure the display panel to the display enclosure.
96 Chapter 4 Removal and replacement procedures
