HP EliteBook 2570p User Manual

8.

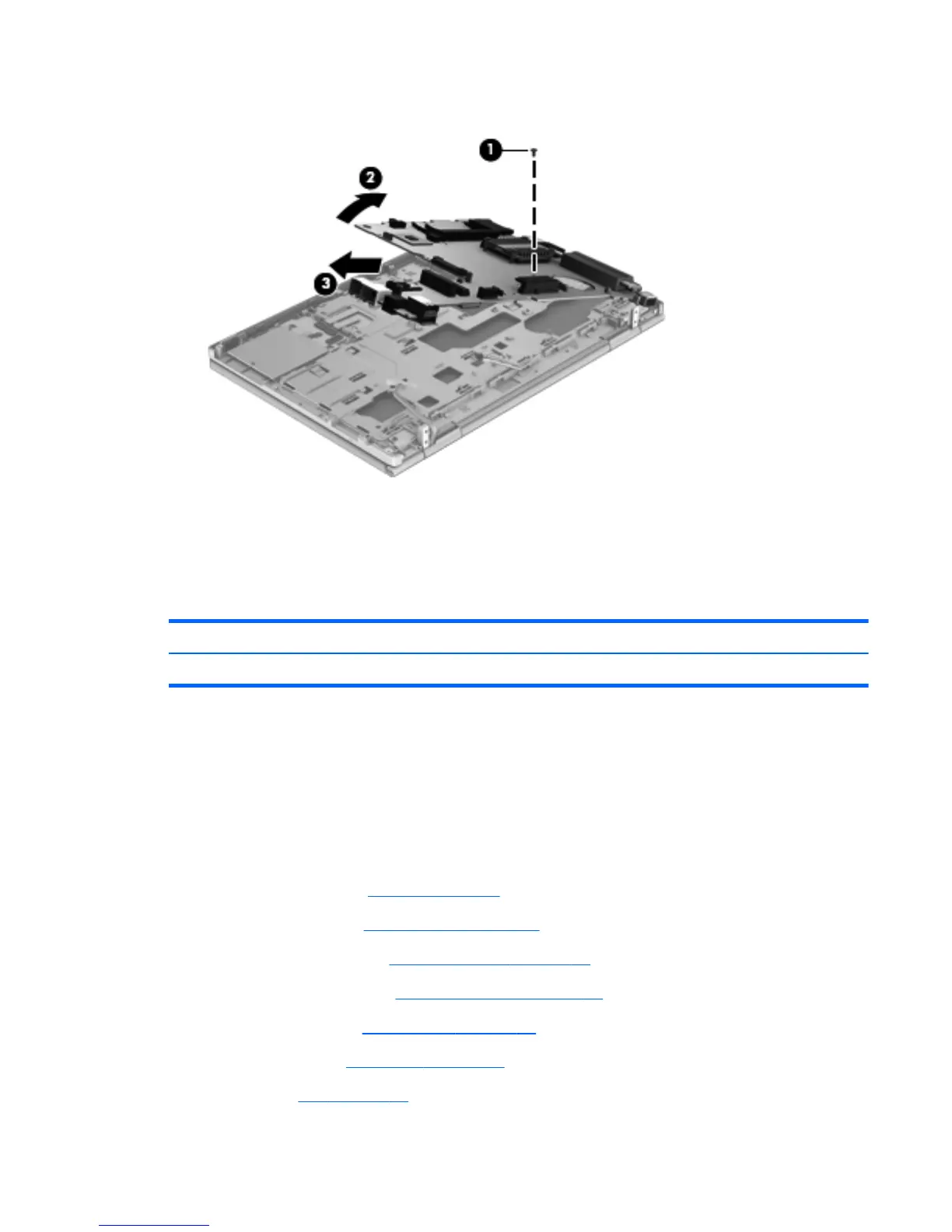

Remove the system board (3) by sliding it up and to the left at an angle.
9. Remove the system board.
Reverse this procedure to install the system board.
Heat sink
Description Spare part number
Heat sink (includes replacement thermal material) 685508-001
Before removing the heat sink, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 50), and then remove the following components:
a. Service cover (see
Service cover on page 52)
b. Bluetooth module (see
Bluetooth module on page 54)
c. Speaker assembly (see
Speaker assembly on page 56)
d.
Optical drive (see
Optical drive on page 57)
e. Hard drive (see
Hard drive on page 58)
f. Fan (see
Fan on page 60)
Component replacement procedures
81

HP EliteBook 2570p Specifications

General

Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
LED backlight	Yes
Display diagonal	12.5 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Bus type	DMI
Stepping	L1
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
Processor model	i5-3210M
System bus rate	5 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-3200 Mobile series
Processor socket	BGA 1023
Processor threads	4
Processor codename	Ivy Bridge
Processor frequency	2.5 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.1 GHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	25
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel® QM77 Express
HDD speed	7200 RPM
HDD interface	SATA II
Storage media	HDD
Optical drive type	DVD Super Multi DL
Total storage capacity	500 GB
Compatible memory cards	SD
Number of HDDs installed	1
On-board graphics card ID	0x166
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Intel segment tagging	Enterprise
Audio system	SRS Pro
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
Keyboard layout	-
Pointing device	Touchpad
Operating system installed	Windows 8 Pro
Form factor	Clamshell
Product type	Laptop
Product color	Gray
Country of origin	China
Battery capacity	55 Wh
Battery life (max)	- h
Number of battery cells	6
AC adapter power	65 W
Sustainability certificates	ENERGY STAR
Processor code	SR0N0
Processor ARK ID	65708
Processor package size	31.0 x 24.0 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	209 mm
Width	305 mm
Height	27 mm
Weight	1630 g
