2.

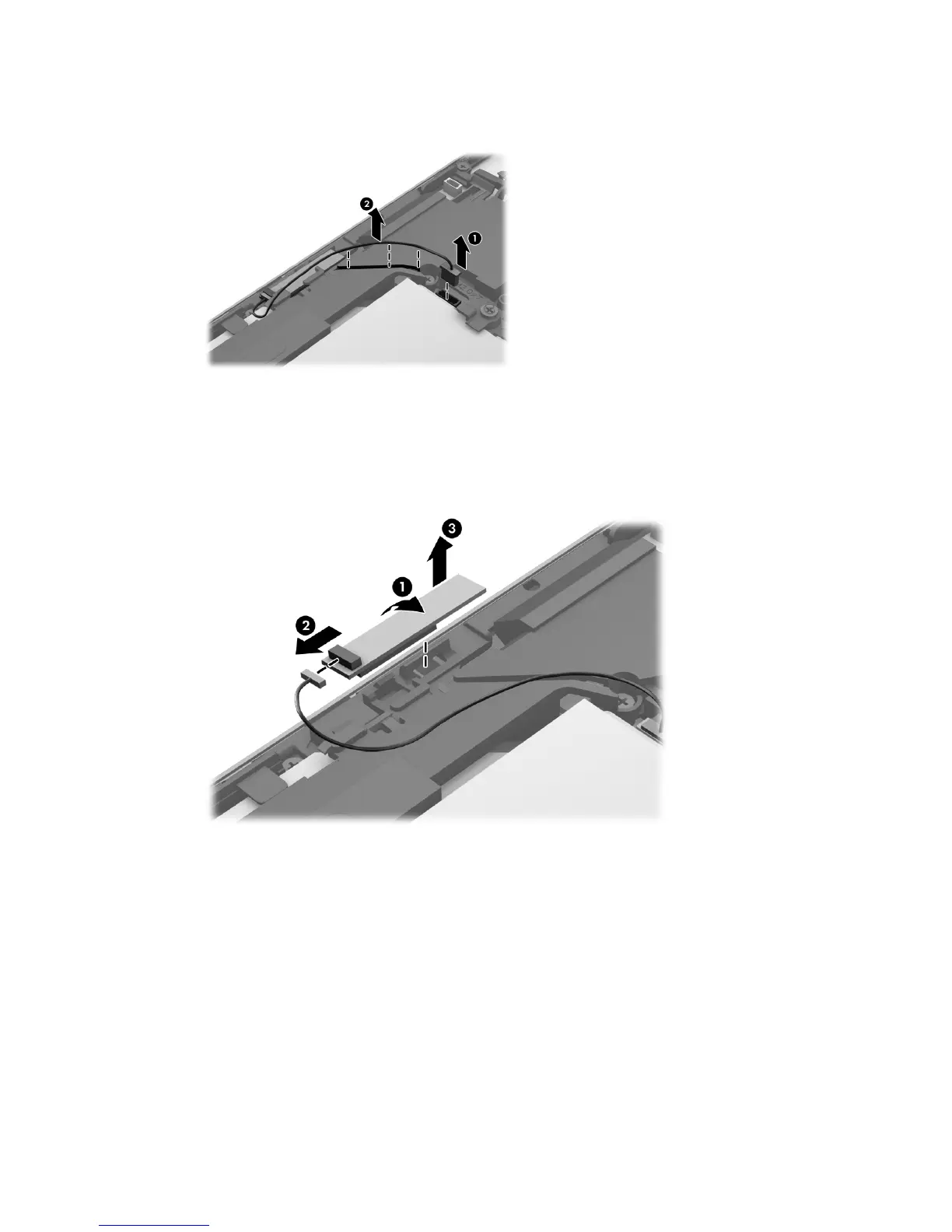

Release the Bluetooth module cable (2) from the clip and routing channel built into the
speaker assembly.
3. Lift and rotate the front edge of the Bluetooth module (1) until it disengages from the clip built into
the speaker assembly.
4. Disconnect the Bluetooth module cable (2) from the Bluetooth module.
5. Remove the Bluetooth module (3).
Reverse this procedure to install a memory module.
Component replacement procedures
55
