2.

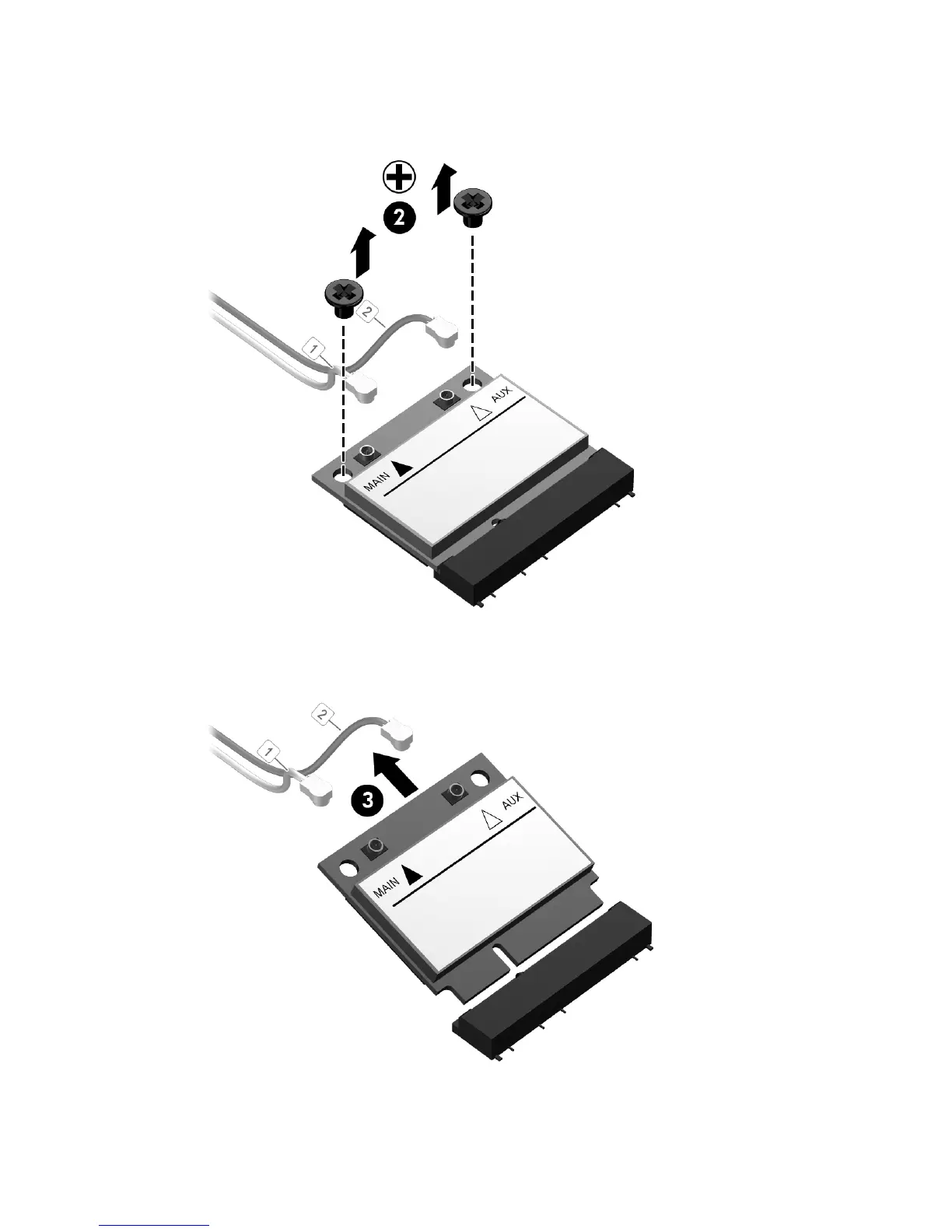

Remove the two Phillips PM2.0×3.0 screws (2) that secure the WLAN module to the
base enclosure. (The WLAN module tilts up.)
3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.
