b. Grasp the edge of the memory module (2), and gently pull the module out of the memory
module slot.
To protect a memory module after removal, place it in an electrostatic-safe container.
10. Insert a memory module:
NOTE: If you are inserting a memory module and both memory module slots are vacant, be
sure that you insert the memory module into the primary memory module slot.

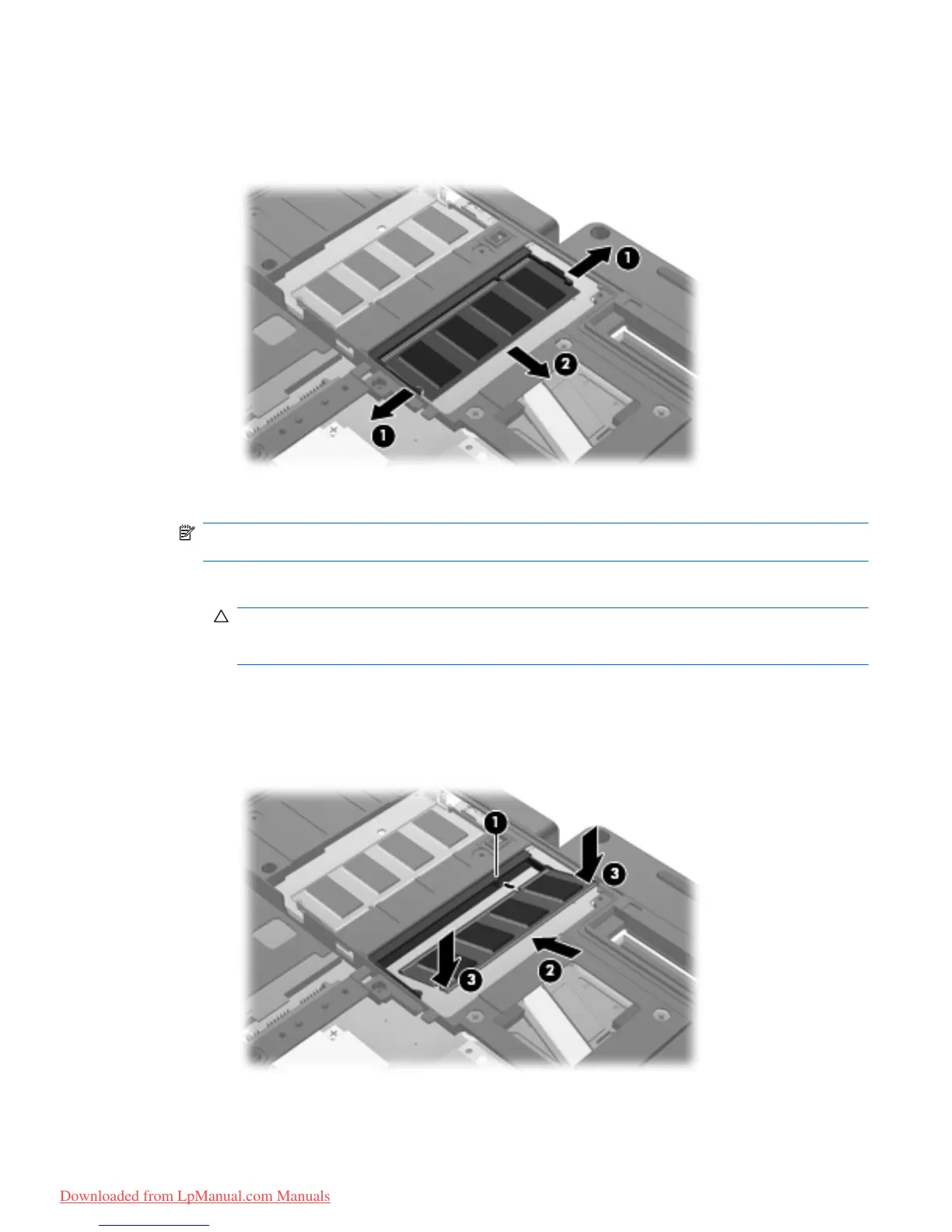

a. Align the notched edge (1) of the memory module with the tab in the memory module slot.
CAUTION: To prevent damage to the memory module, hold the memory module by the
edges only. Do not touch the components on the memory module and do not bend the
memory module.
b. With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module (2) into the memory module slot until it is seated.
c. Gently press the memory module (3) down, applying pressure to both the left and right
edges of the memory module, until the retention clips snap into place.
11. Align the tabs (1) on the hard drive compartment cover with the notches on the computer.
Adding or replacing a memory module 105
