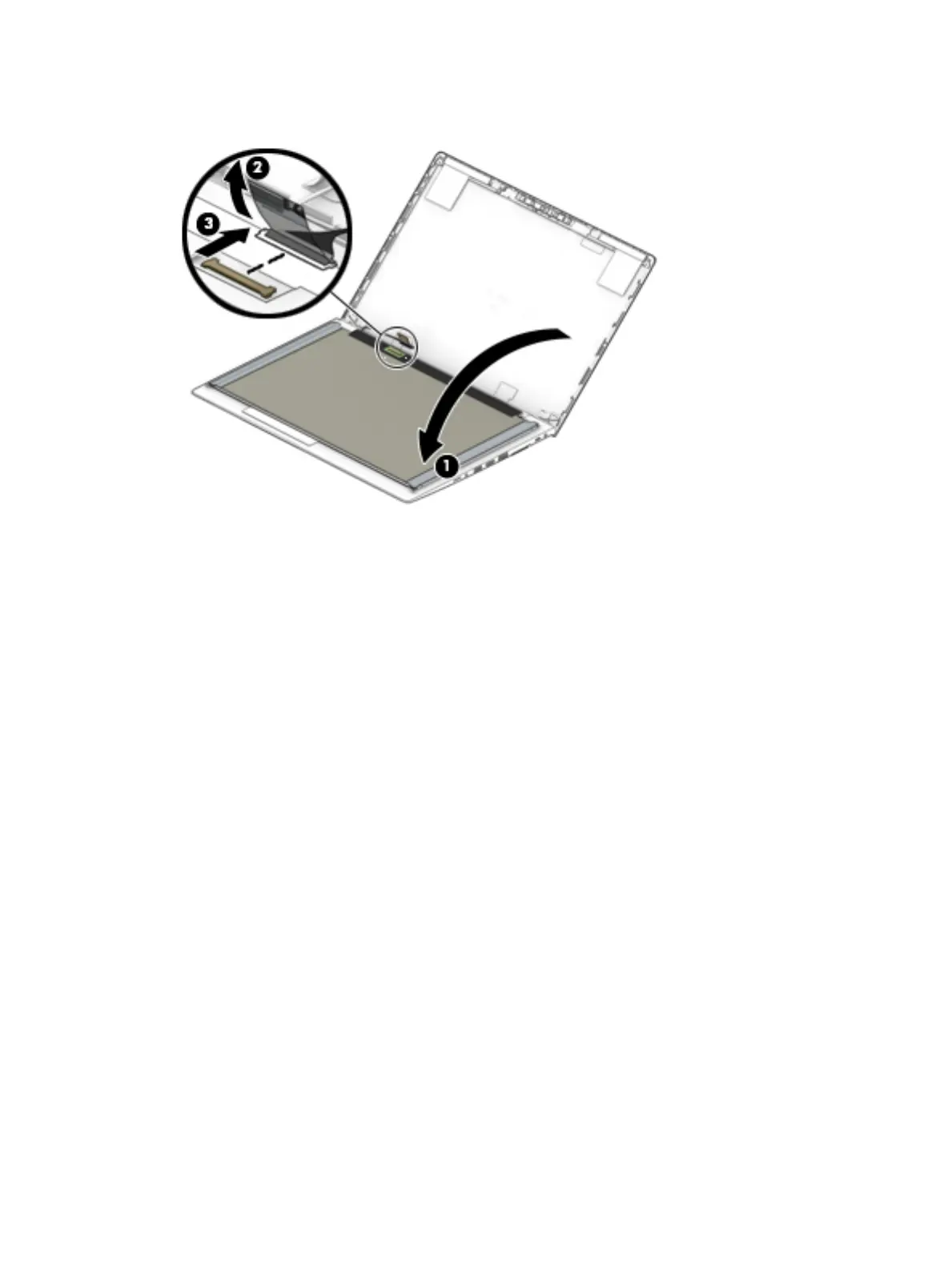

15. On the back of the display panel, lift the tape from atop the connector (2), and then disconnect the
display cable from the rear of the panel (3).
The raw display panel is available using the following spare part numbers:
FHD panel, non-touch: L21939-001
FHD panel, non-touch, models with IR and HD cameras and an ambient light sensor: L21940-001
FHD panel, non-touch, models with WWAN: L21941-001
FHD panel, touch: L21942-001
FHD panel, touch, privacy: L21943-001
76 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
