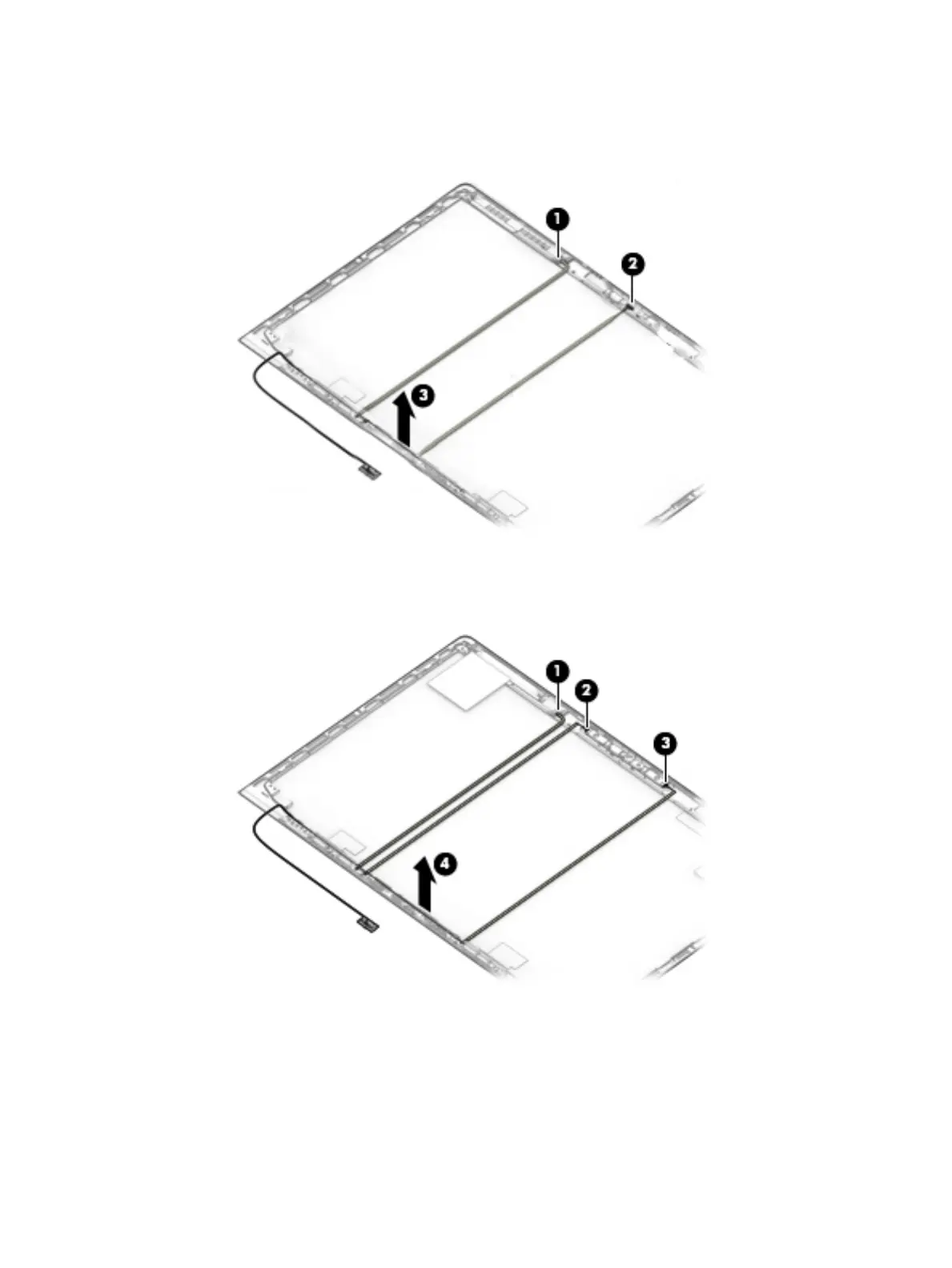

a. HD camera models
Disconnect the cable from the ambient light sensor board (1) and from the HD camera (2), and
then remove the cable from the display enclosure (3).
b. IR camera models
Disconnect the cable from the ambient light sensor board (1), from the left (2) and right (3) sides
of the IR camera, and then remove the cable from the display enclosure (4).
The camera cable is available in the Cable Kit using spare part number L14370-001.
