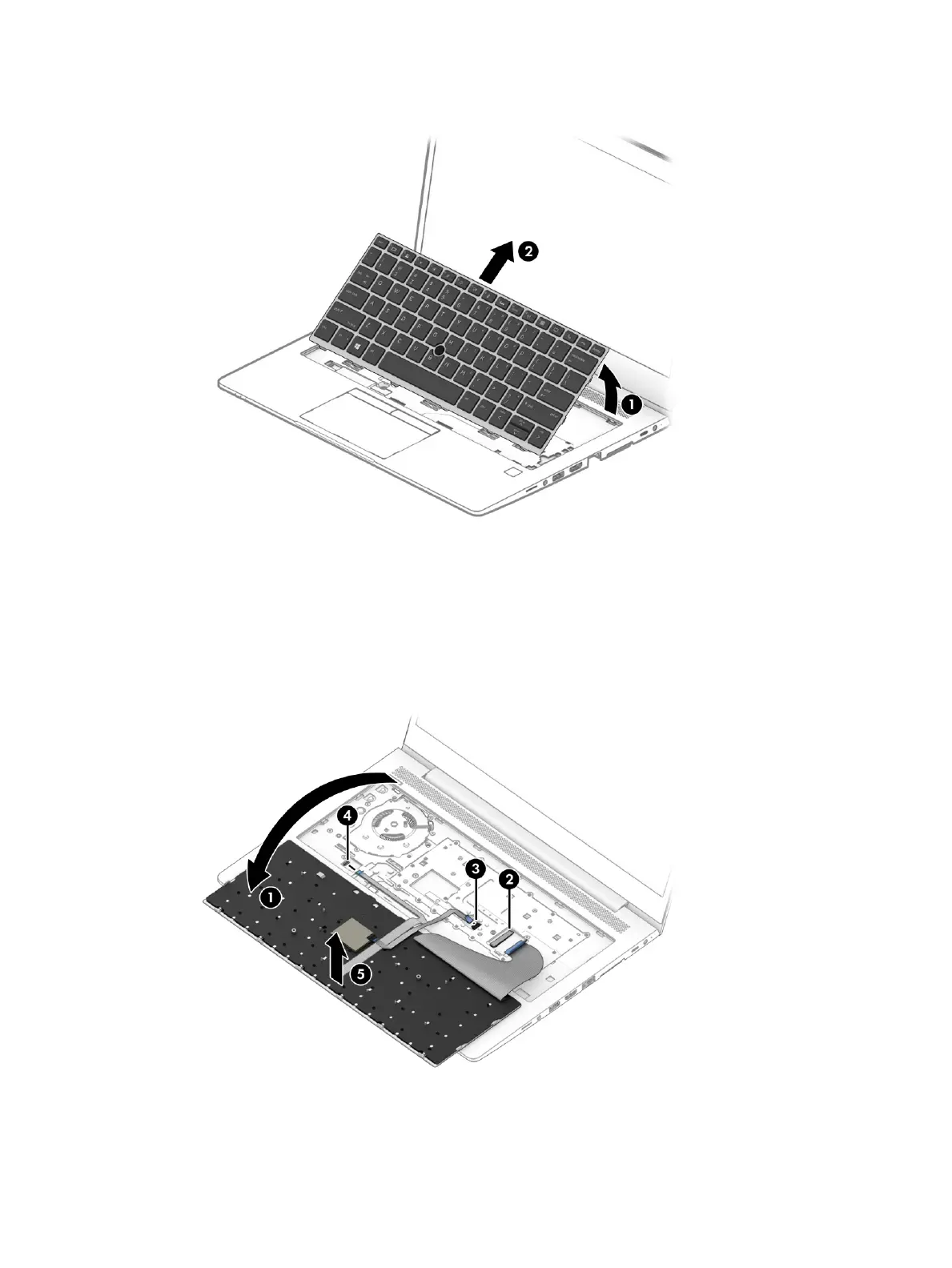

4. Pry and lift to disengage the top of the keyboard (1), and then lift the rear of the keyboard (2).
5. Rotate the keyboard onto the palm rest (1).
6. Disconnect the keyboard cable from the system board ZIF connector (2).
7. Disconnect the pointing stick cable from the system board ZIF connector (3).
8. Disconnect the backlight cable from the system board ZIF connector (4) (select models only).
9. Remove the keyboard (5).
Reverse this procedure to install the keyboard.
