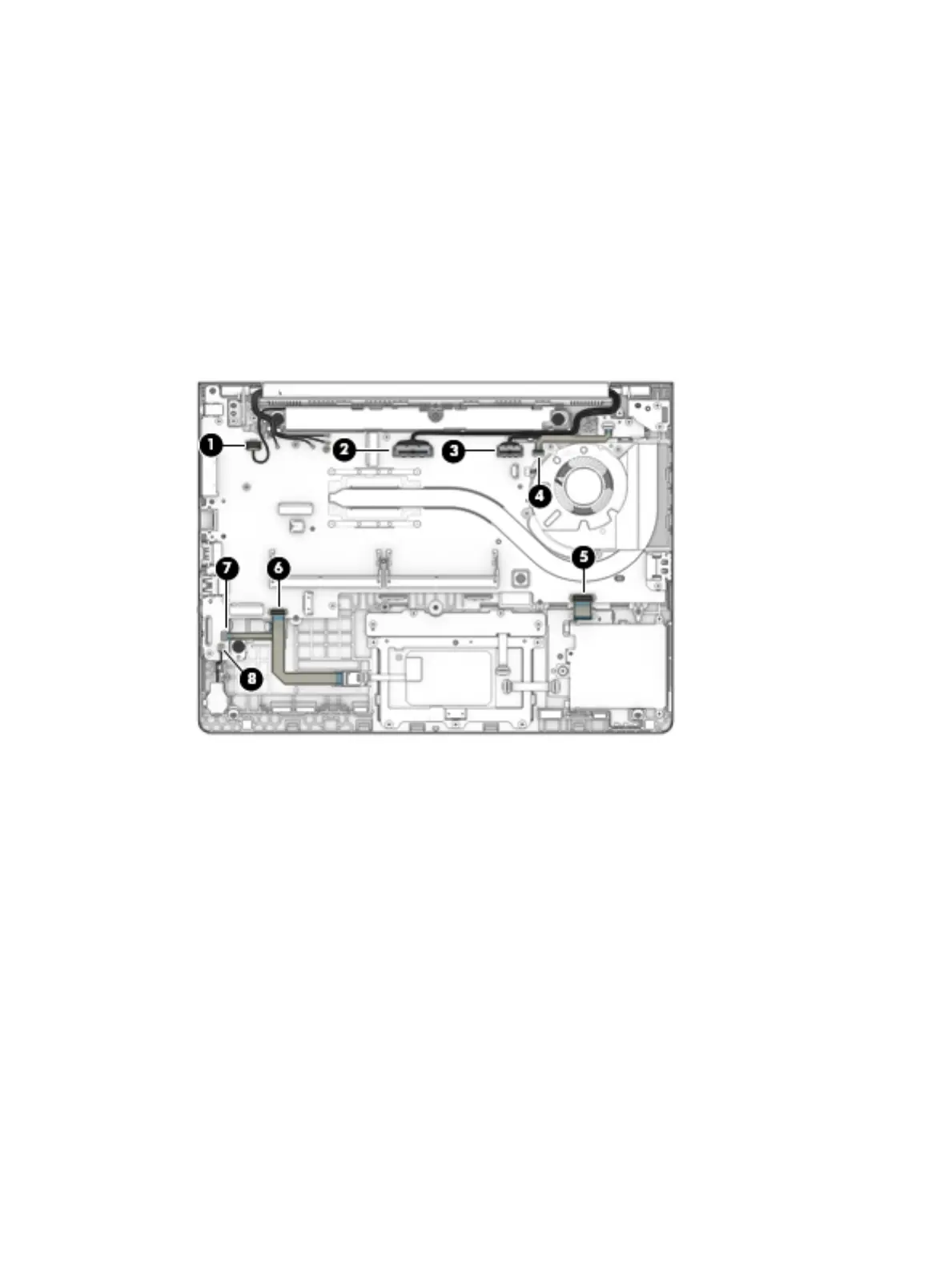

4. Disconnect the following cables from the system board:
(1) Speaker cable
(2) Display cable
(3) Camera cable
(4) Power button board cable (ZIF)
(5) Smart card reader cable (ZIF)
(6) NFC module cable (ZIF)
(7) Fingerprint reader cable (reverse ZIF)
(8) RTC battery cable
5. Remove the Phillips M2.0 × 3.0 screw (1) that secures the USB connector bracket to the computer, and
the lift the bracket o the system board (2).
