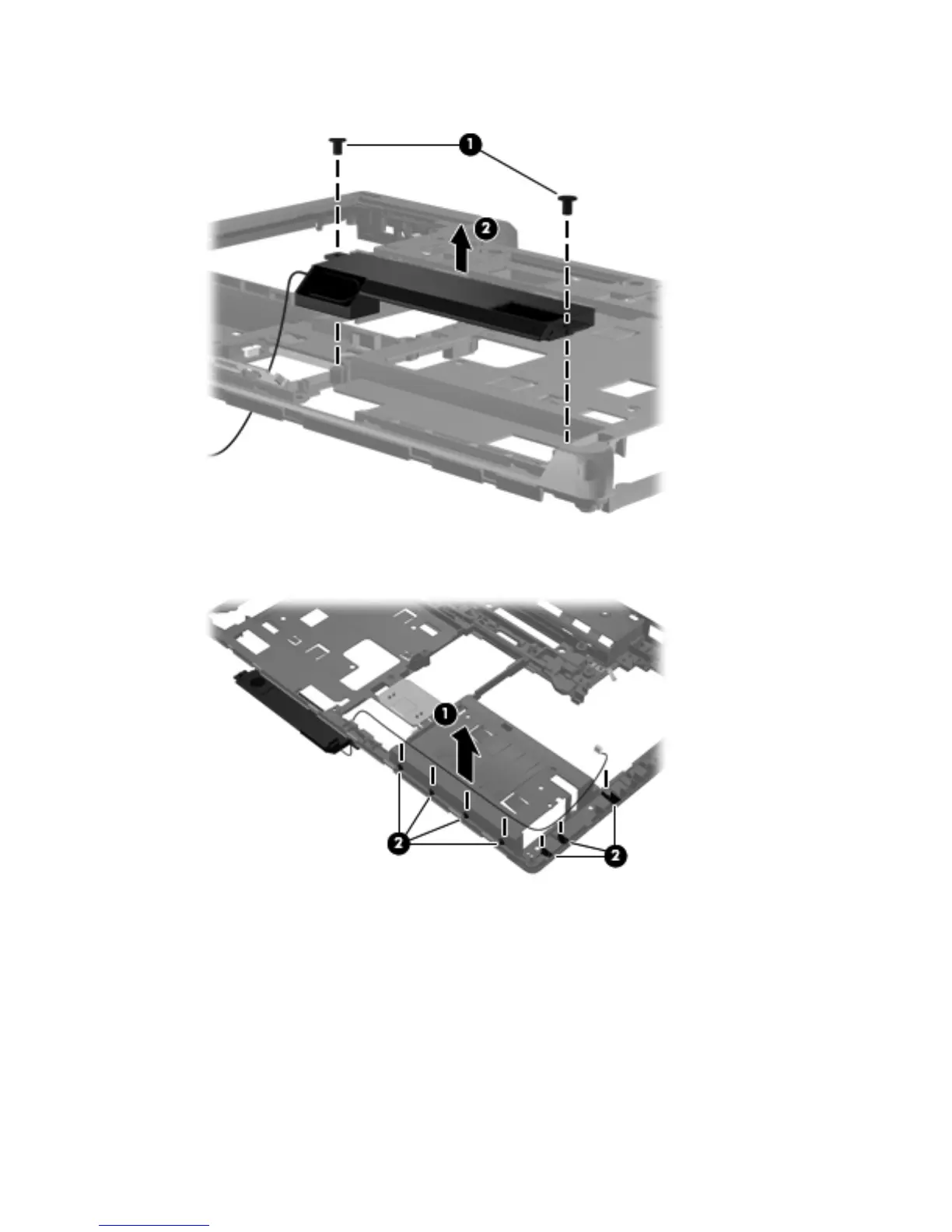

3. Remove the speaker assembly (2) from the bottom cover.
4. Turn the bottom cover over, and then remove the speaker cable (1) from the routing path (2) in
the bottom cover. Note that the cable routes from the bottom to the top of the bottom cover.
Reverse this procedure to install the speaker assembly.
Component replacement procedures 107
