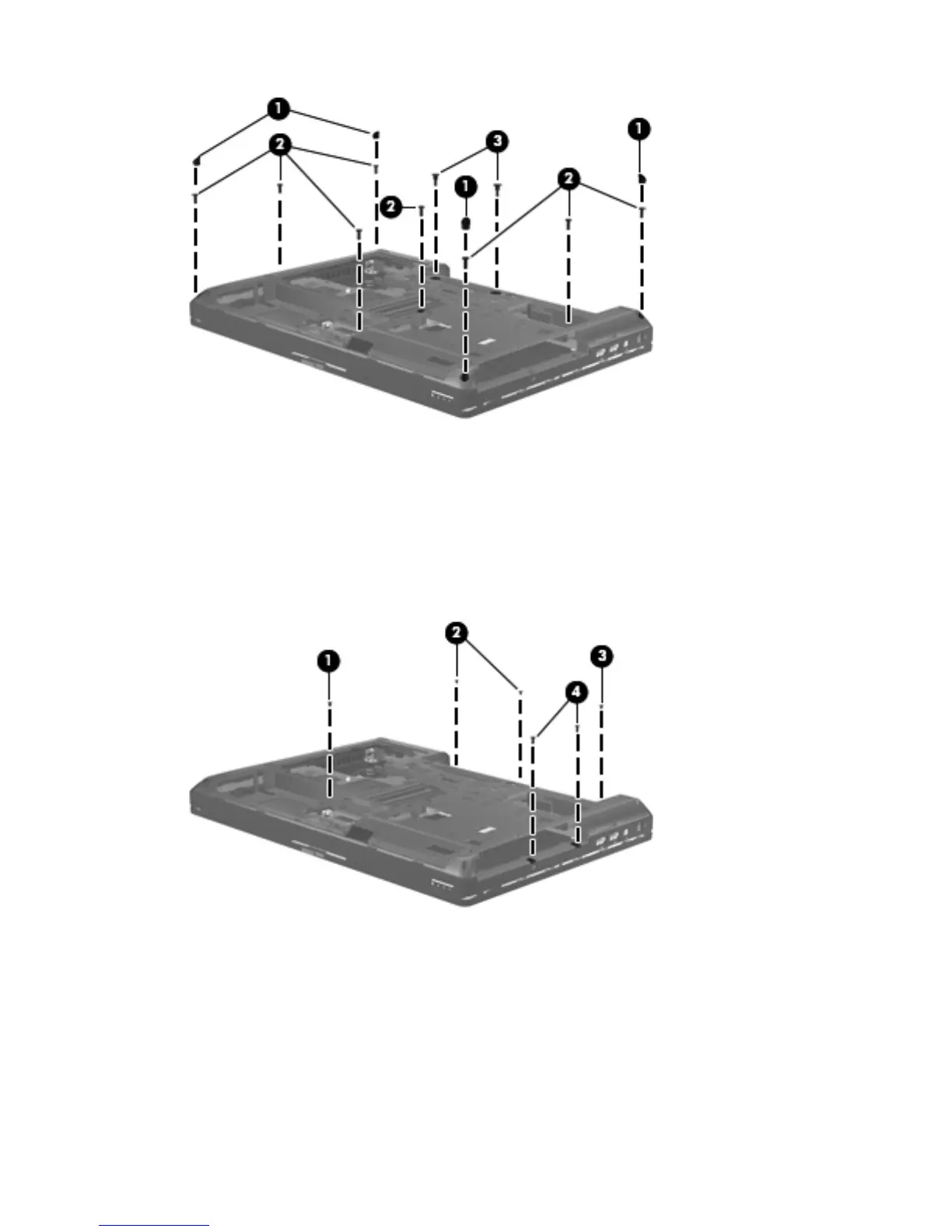

3. Remove the following screws that secure the bottom cover to the computer:
●
(1): 1 Phillips PM2.0×3.0 screw from the hard drive bay
●
(2): 2 Phillips PM2.0×3.0 screws from the battery bay
●
(3): 1 Phillips broadhead PM2.0×4.0 screw from the battery bay
●
(4): 2 Phillips PM2.5×4.5 screws from the optical drive bay
4. Remove the 4 Torx PM2.5×8.0 screws (1) from the rear of the computer.
100 Chapter 4 Removal and replacement procedures
