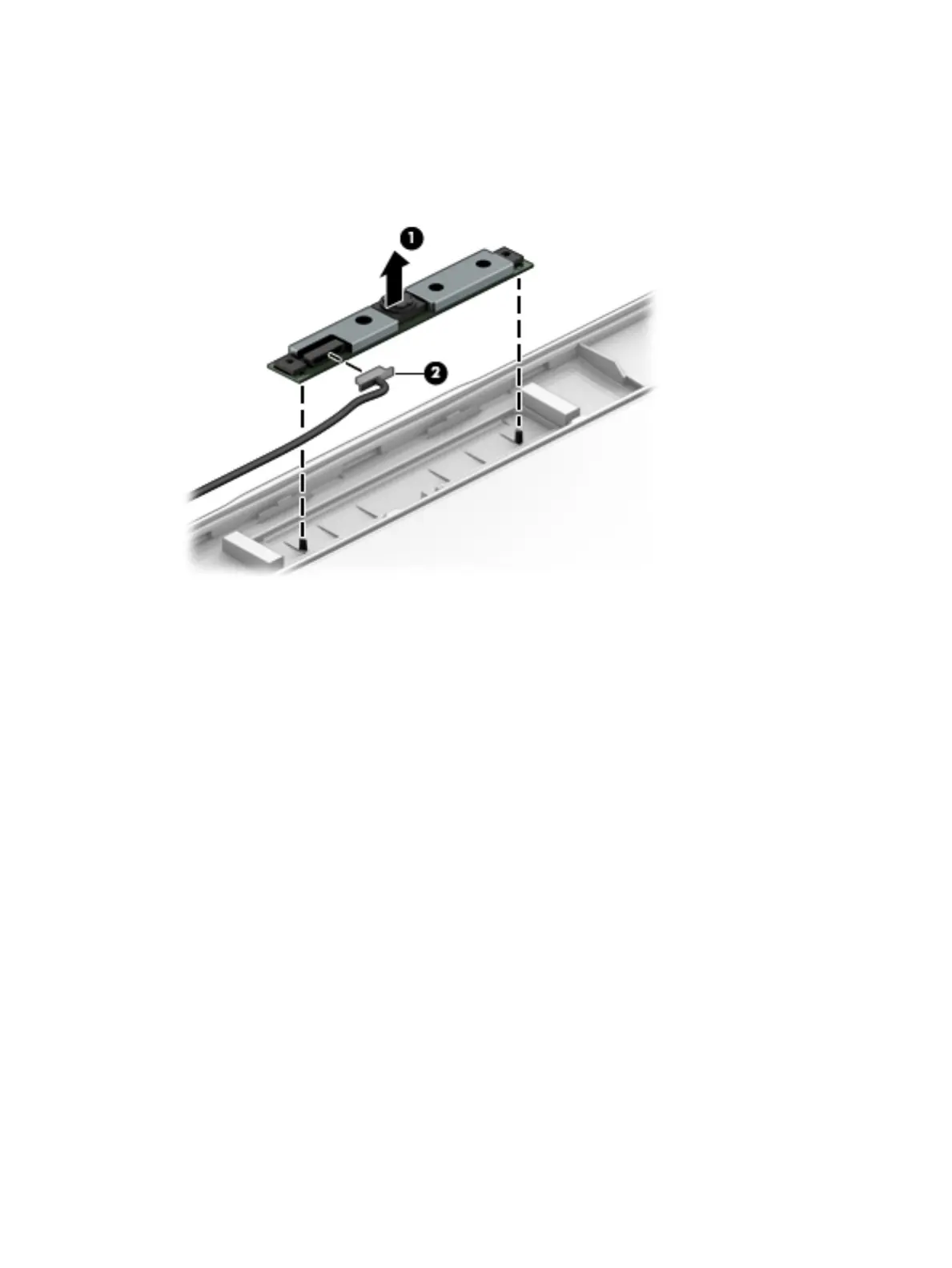

6. If it is necessary to replace the webcam or microphone module, use a thin tool to pry the module away
from the double-sided tape on the display enclosure (1), and then disconnect the cable from the module
(2).
The webcam module is available using spare part number 800575-020. The microphone module is
available using spare part number 920485-001.
72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
