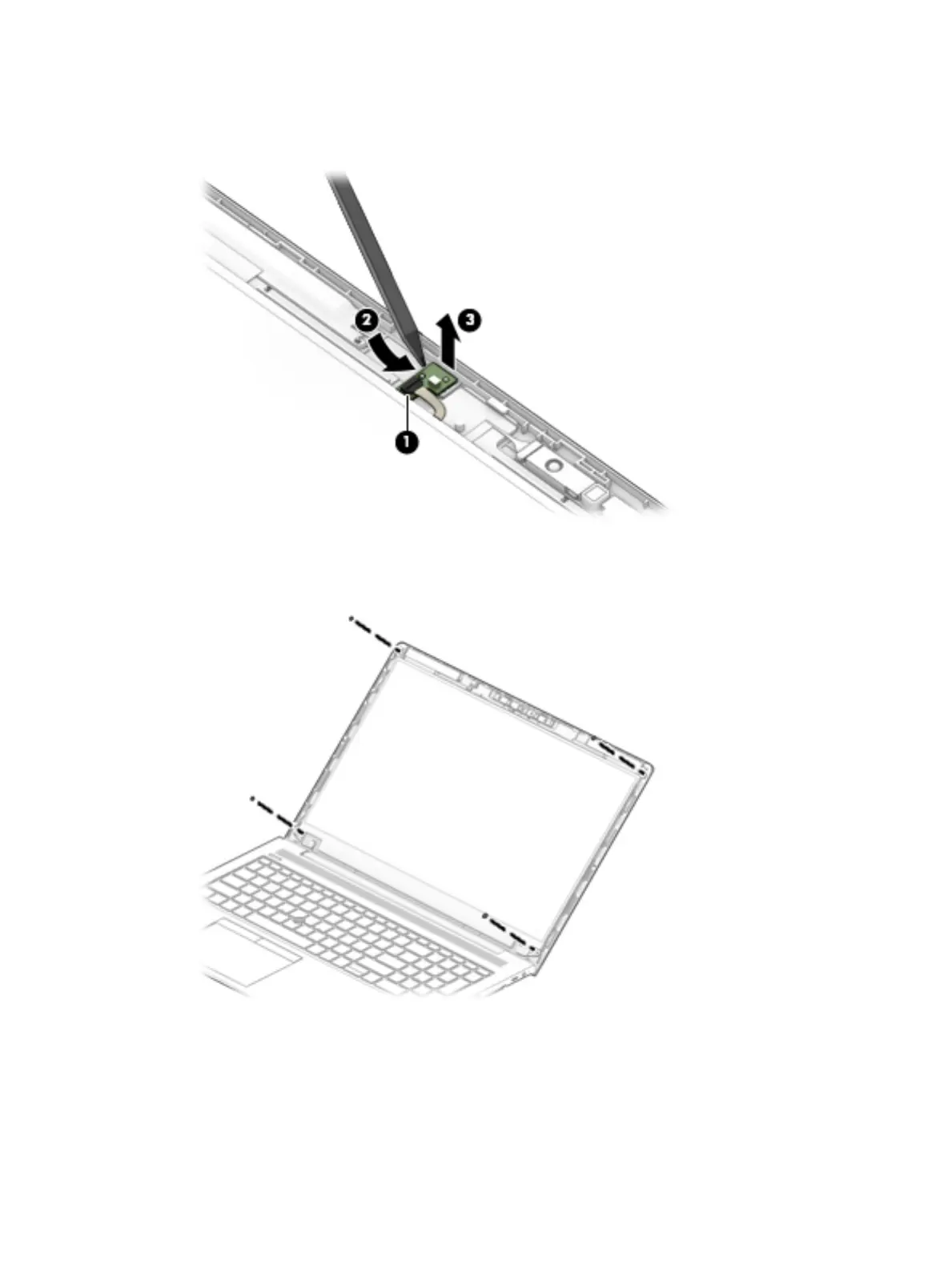

12. If it is necessary to remove the ambient light sensor board, disconnect the cable from the board (1), lift
upward to disengage the board from the adhesive on the display enclosure (2), and then remove the
board from the display (3).
The ambient light sensor board is available using spare part number L15511-001.
13. If it is necessary to remove the display panel from the enclosure, remove the four Phillips M2.0×2.0
screws that secure the panel to the display enclosure.
14. Rotate the display panel over onto the keyboard (1).
Component replacement procedures 77
