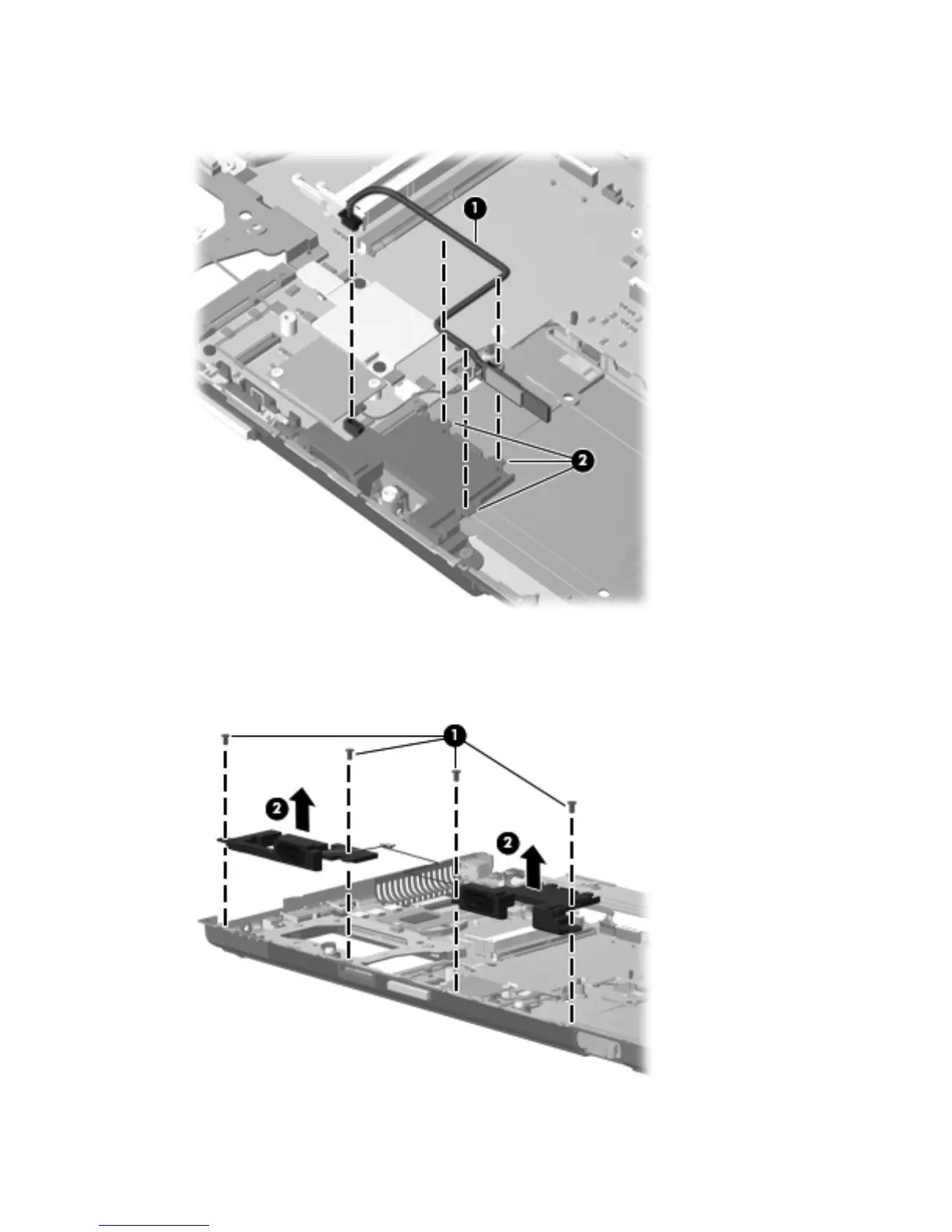

2. Unplug the Bluetooth cable (1) from the system board, and then remove the cable from the
routing channel atop the right speaker (2).
3. Remove the four Phillips PM2.5×5.0 screws (1) that secure the speaker assembly to the base
enclosure.
4. Remove the speaker assembly (2) from the base enclosure.
96 Chapter 4 Removal and replacement procedures
