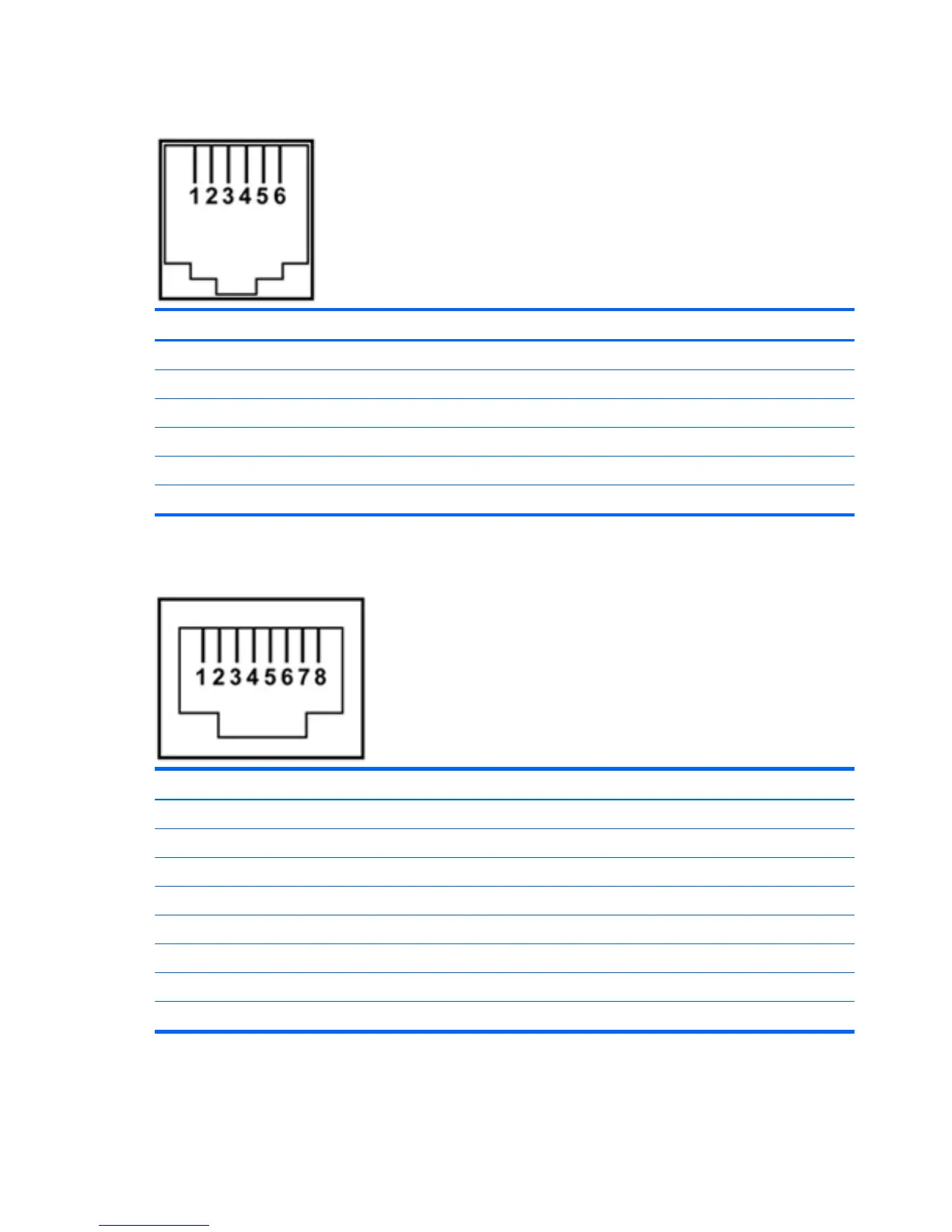

RJ-11 (modem)
Pin Signal
1 Unused
2Tip
3Ring
4 Unused
5 Unused
6 Unused
RJ-45 (network)
Pin Signal
1Transmit +
2Transmit -
3 Receive +
4 Unused
5 Unused
6 Receive -
7 Unused
8 Unused
136 Chapter 8 Connector pin assignments
