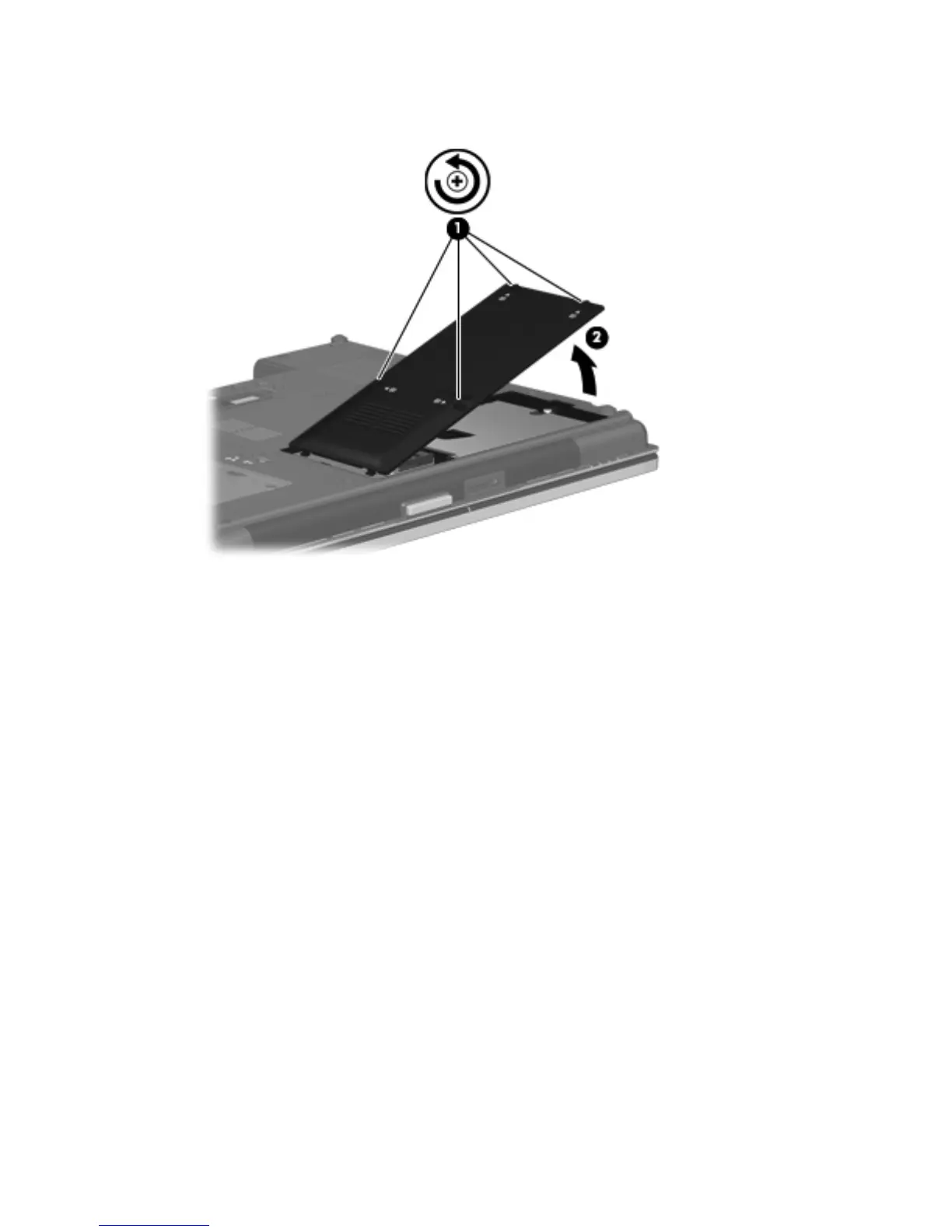

3. Lift the right side of the hard drive cover, swing it to the left (2), and remove the cover. The hard
drive cover is included in the Plastics Kit, spare part number 595784-001
4. Loosen the Phillips PM2.5×12.0 captive screw (1) that secures the hard drive to the computer.
5. Grasp the Mylar tab on the hard drive and slide the hard drive to the right (2) to disconnect it
from the system board.
Component replacement procedures 55
