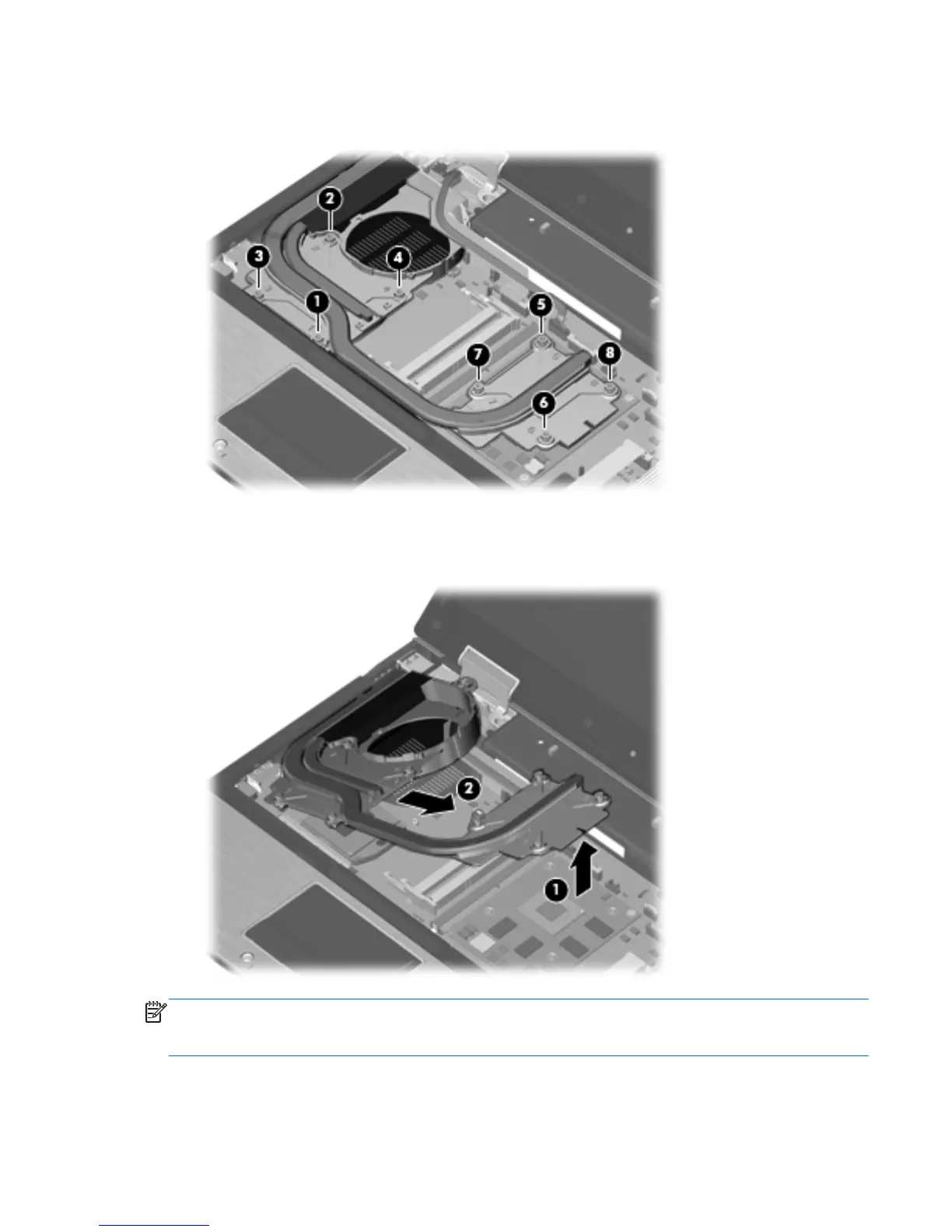

2. In the order indicated, loosen the eight Torx T8M2.0x8.0 captive screws (1) - (8) that secure the
heat sink to the base enclosure.
3. Lift the right side of the heat sink (1) to disengage it from the graphics card.
4. Remove the heat sink (2) from the computer.
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink (1) - (3)
each time the heat sink is removed. Thermal material is included with all heat sink and processor
spare part kits.
Component replacement procedures 77
