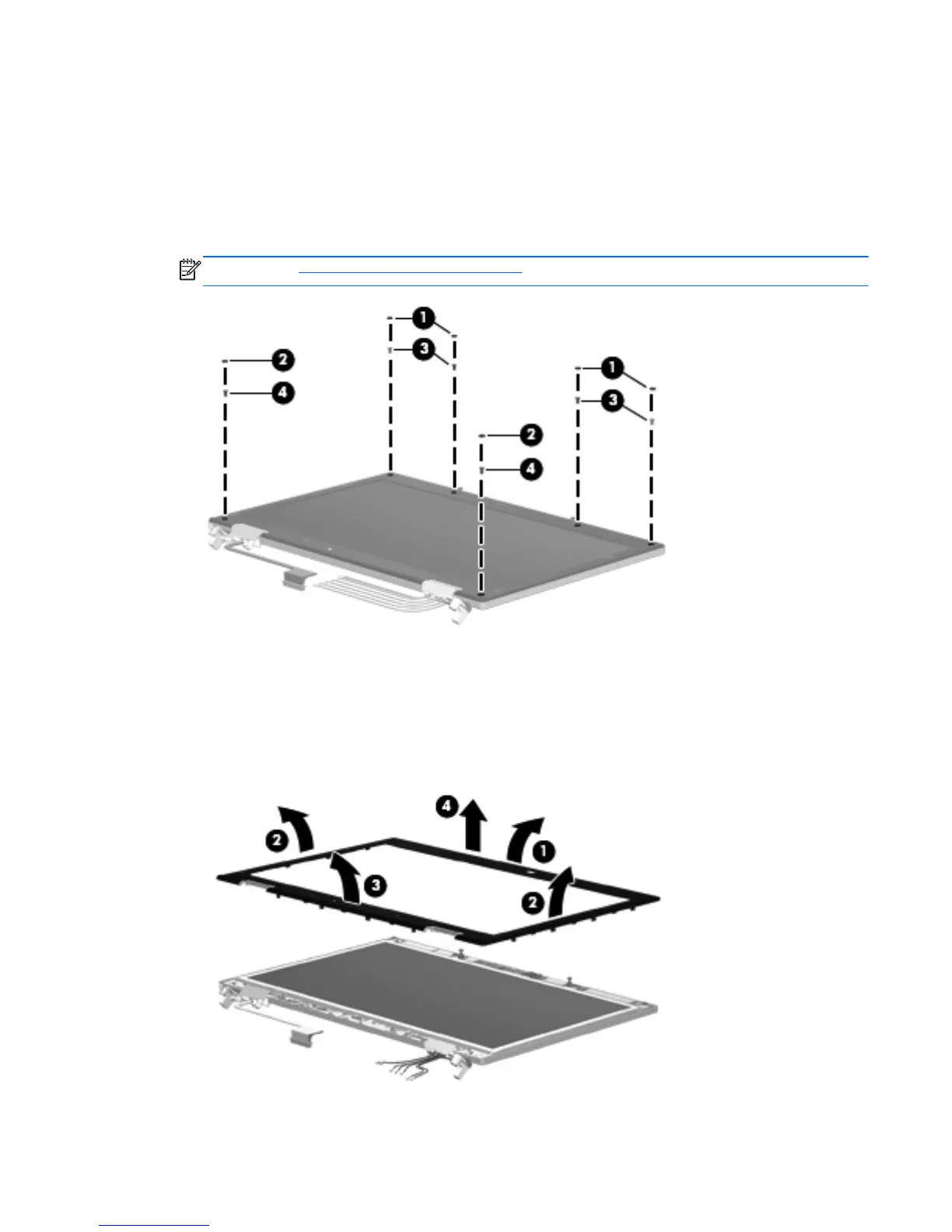

11. If it is necessary to replace the display bezel or display hinges, remove the following:
(1) Four rubber screw covers on the display bezel top edge
(2) Two rubber screw covers on the display bezel bottom edge
(3) Four Phillips PM2.5×5.0 screws on the display bezel top edge
(4) Two Phillips PM2.5×5.0 screws on the display bezel bottom edge
NOTE: See Ambient light sensor on page 52 for display inverter replacement instructions.
12. Flex the top (1) of the bezel, the inside edges of the left and right sides (2), and then the bottom
(3) of the bezel until it disengages from the display enclosure.
13. Remove the display bezel (4). The display bezel is available using spare part numbers
595747-001 (for use with computer models with a webcam), 595748-001 (for use with computer
models equipped without a webcam), and 595749-001 (for use with computer models equipped
with DreamColor displays).
Component replacement procedures 85
