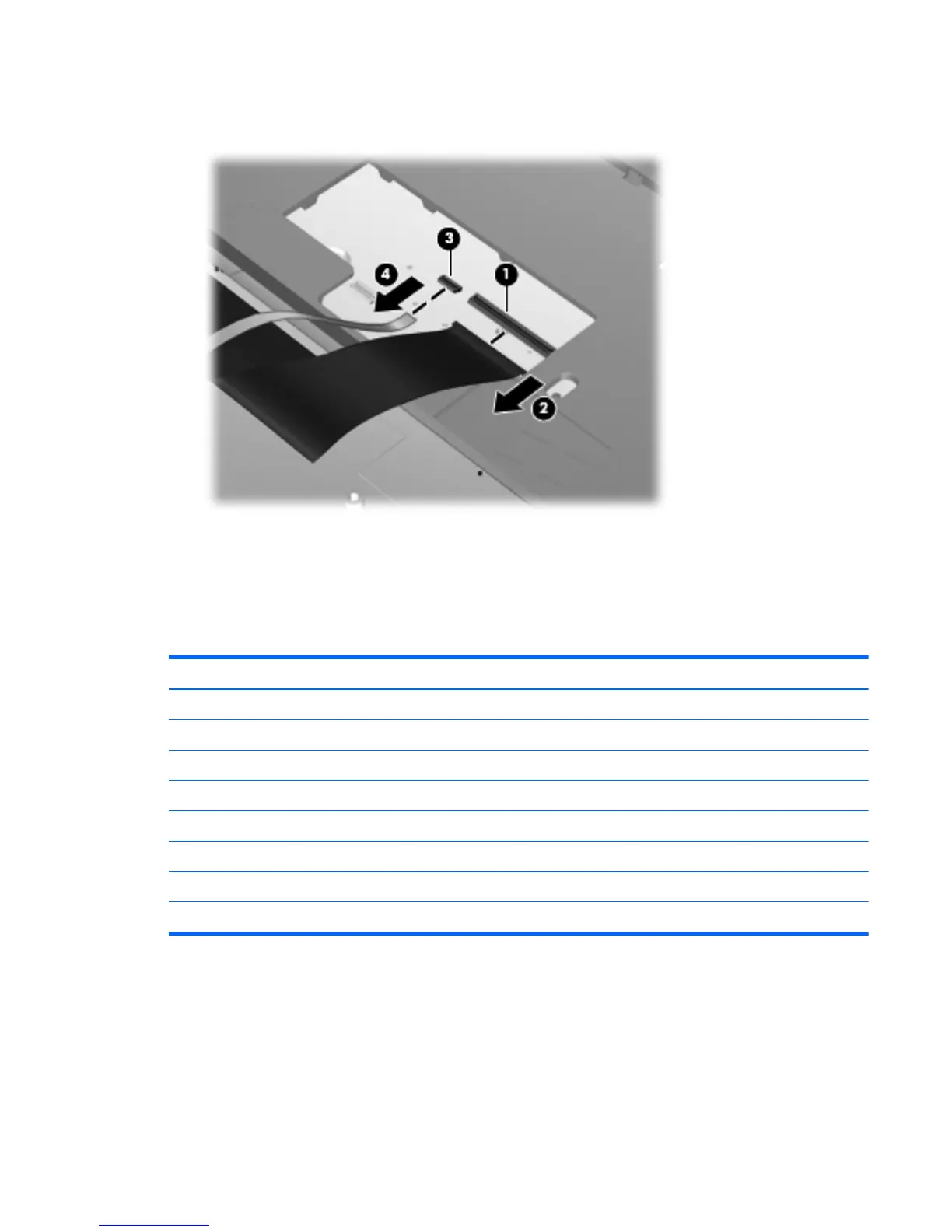

8.
Lift the pointing stick connector latch (3), and then disconnect the pointing stick cable from the
system board (4).
9.
Remove the keyboard.
Reverse this procedure to install the keyboard.
Bottom cover
Description Spare part number
For use in 6560b models:
Includes touchpad only 641203-001
Includes fingerprint reader, without pointing stick 641204-001
Includes fingerprint reader and pointing stick 641205-001
Includes pointing stick, without a fingerprint reader 641206-001
For use in 8560p models:
Includes fingerprint reader and pointing stick 641207-001
Includes pointing stick, no fingerprint reader 641208-001
Before removing the bottom cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
Component replacement procedures
97
