d.

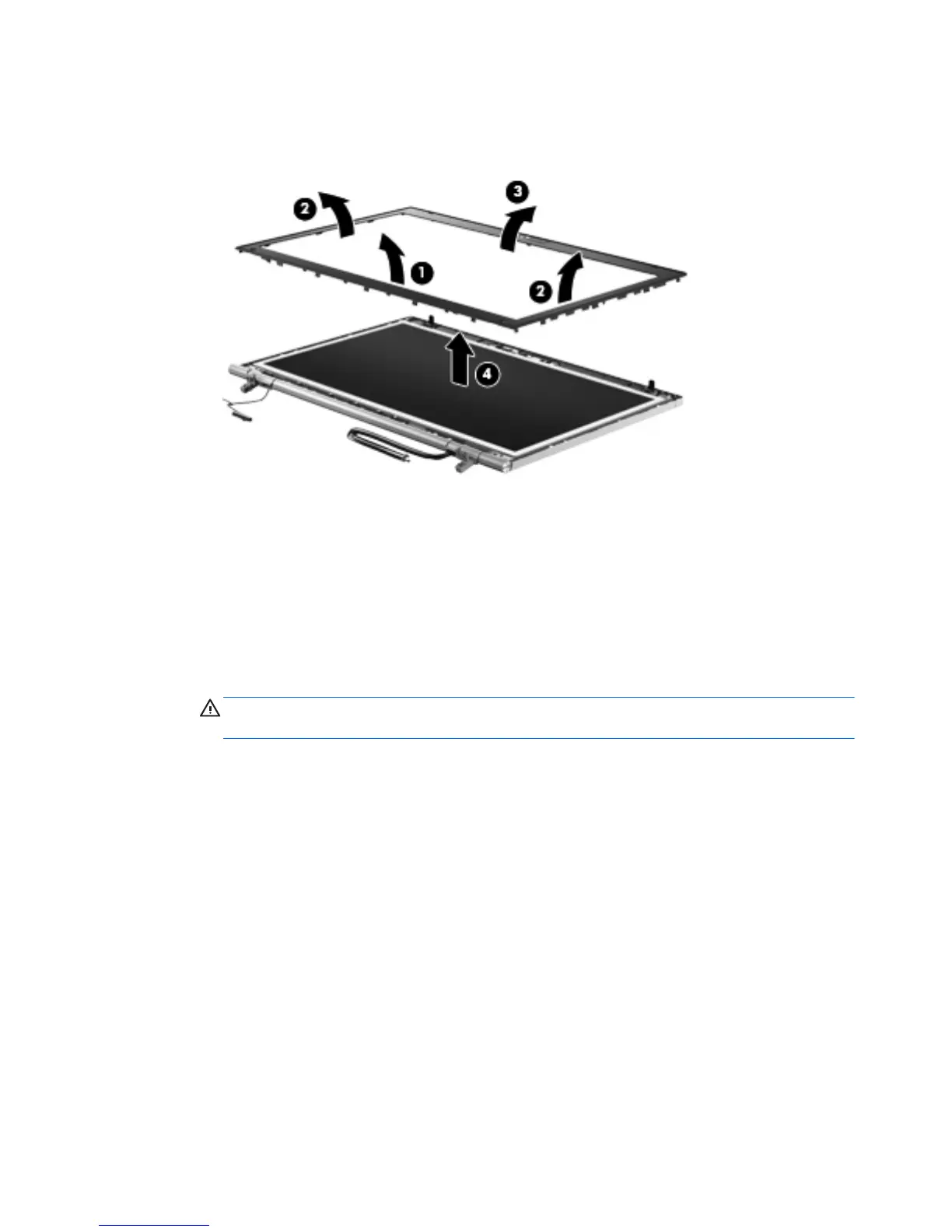

Remove the display bezel (4). The display bezel is available using spare part numbers
686304-001 (for use only on HP EliteBook 8570p Notebook PC computer models) and
686303-001 (for use only on HP ProBook 6570b Notebook PC computer models).
10.
If it is necessary to replace the webcam/microphone module:
a. Release the shielding tabs that secure the webcam/microphone module (1) to
the display enclosure.
b. Detach the webcam/microphone module (2) from the display enclosure. (The webcam/
microphone module is attached to the display enclosure with double-sided tape.)
c. Disconnect the webcam/microphone module cable (3) from the webcam/
microphone module.
CAUTION: Handle the webcam/microphone module with caution. The module has a thin
profile and is susceptible to damage when not handled carefully.
136 Chapter 4 Removal and replacement procedures
