c.

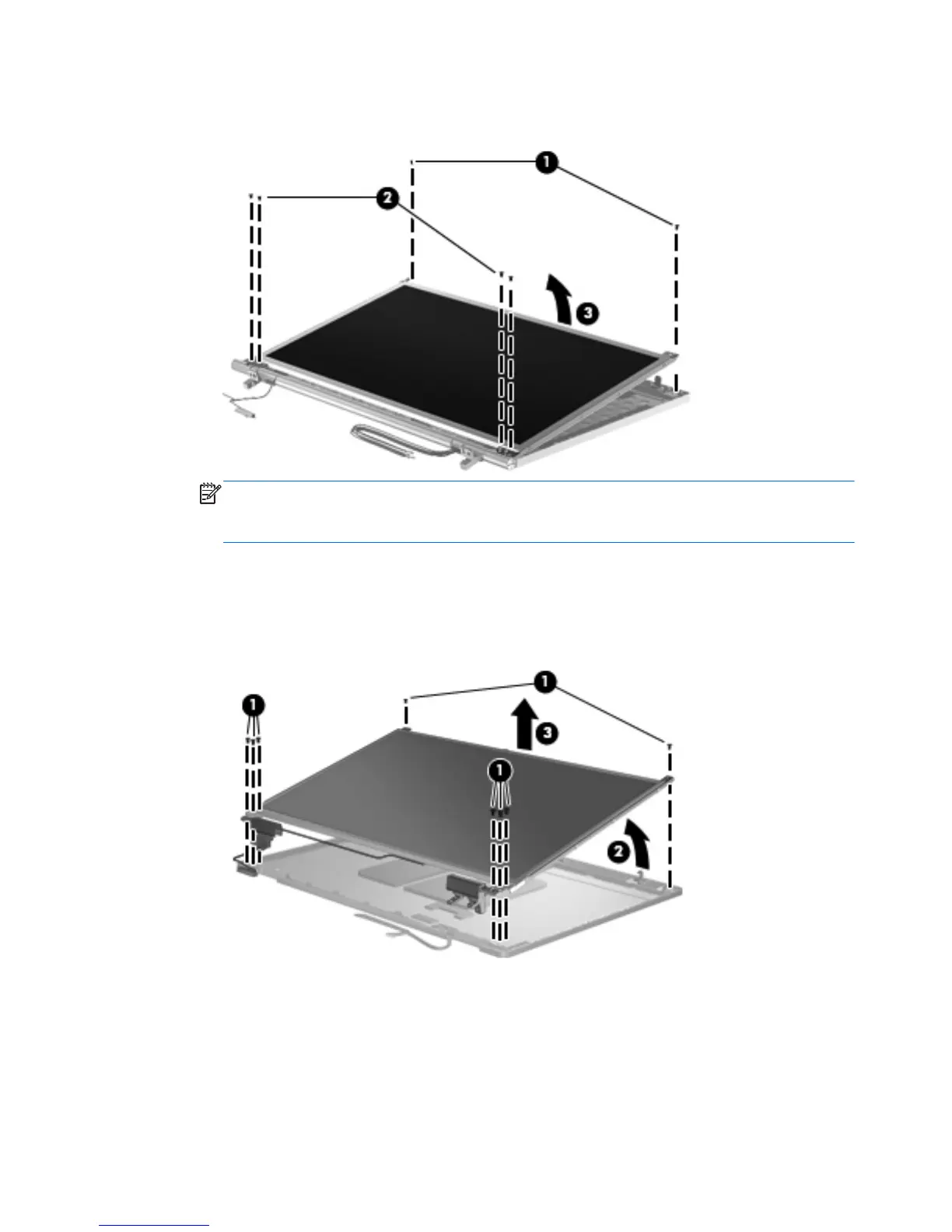

Lift the top edge of the display panel (1), and then swing it up and forward until it rests at an
upright position.
NOTE: Substeps d through f apply to an HP EliteBook 6570b Notebook PC
computer model. See substeps a through c for display panel release procedures for an HP
EliteBook 8570p Notebook PC computer model.
d. Remove the eight Phillips PM2.5×4.0 screws (1) that secure the display panel to
the display enclosure.
e. Lift the top edge of the display panel (2), and then swing it up and forward until it (3) rests
at an upright position.
f. Position the display enclosure and display panel with the display panel cable connector
toward you.
g.
Release the adhesive support strip (1) that secures the display panel cable to
the display panel.
138 Chapter 4 Removal and replacement procedures
