HP EliteBook 8570w

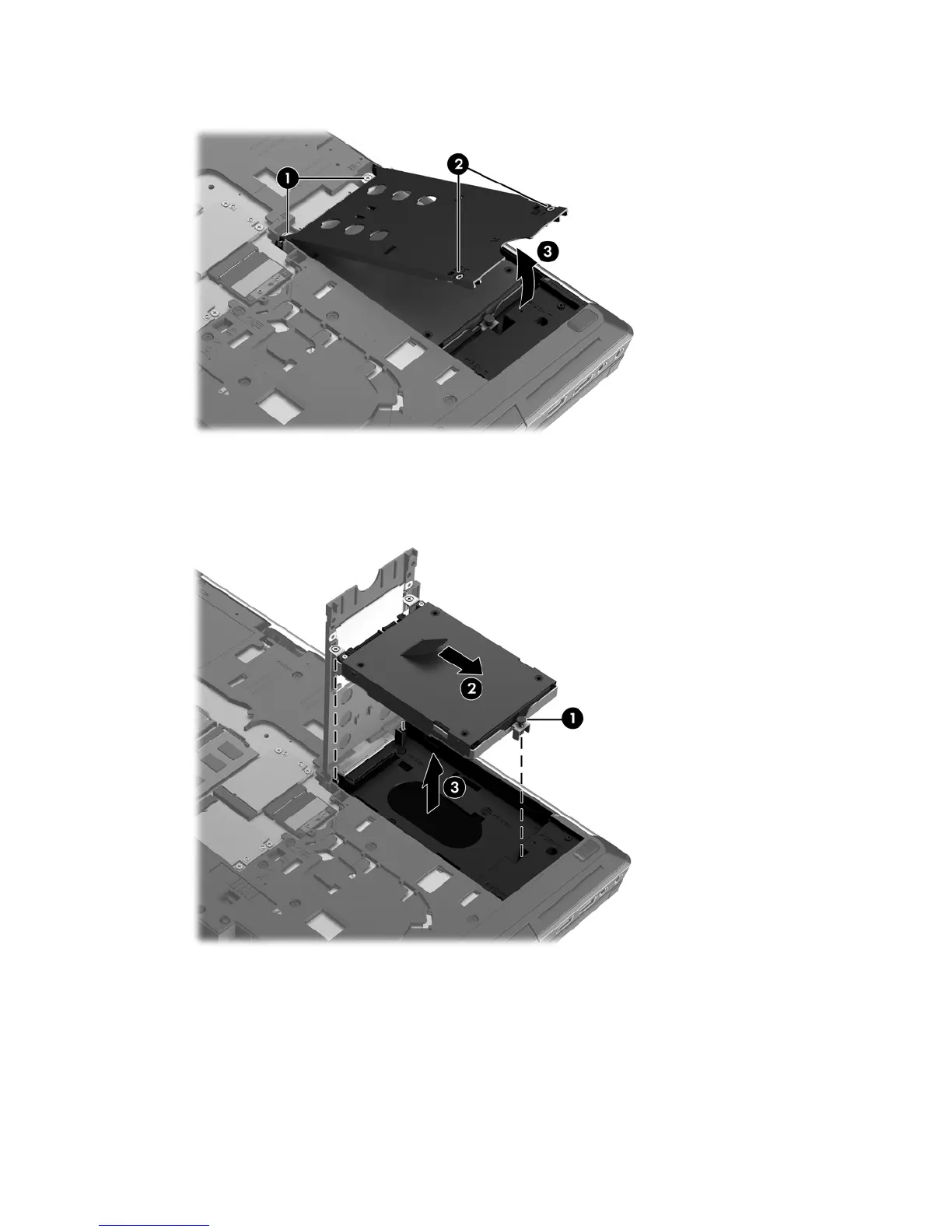

8. Open the smart card holder (3) to a vertical position.
9. Loosen the hard drive screw (1). Pull the hard drive tab (2) to the right to disconnect the hard
drive.
10. Lift the hard drive (3), and then pull the hard drive out of the hard drive bay.
30 Chapter 5 Maintenance
