HP EliteBook 9470m

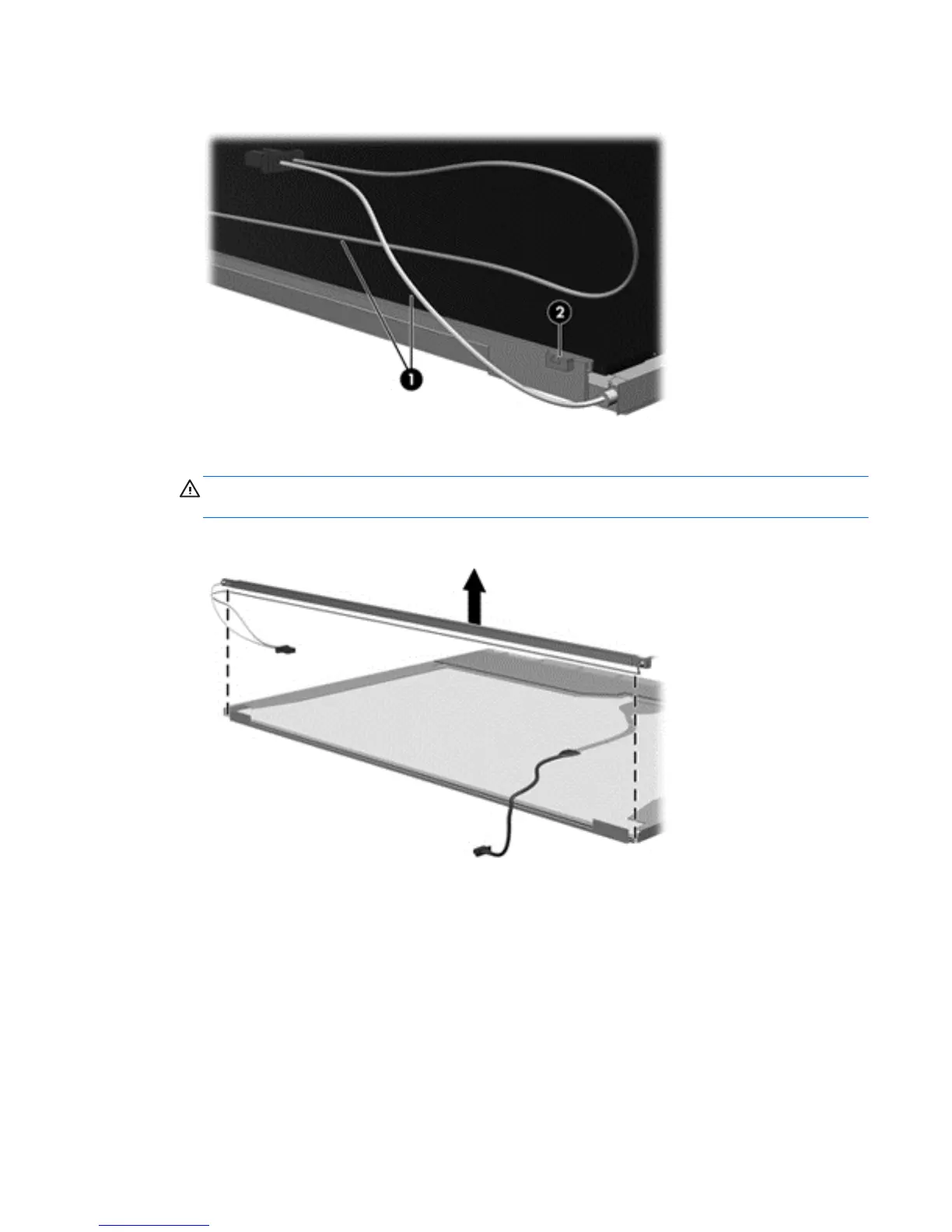

15. Remove the backlight cables (1) from the clip (2) in the display panel.
16. Position the display panel upside-down.
WARNING! The backlight contains mercury. Exercise caution when removing and handling the
backlight to avoid damaging this component and causing exposure to the mercury.
17. Remove the backlight frame from the display panel.
Display
131
