HP EliteDesk 705 G1 User Manual

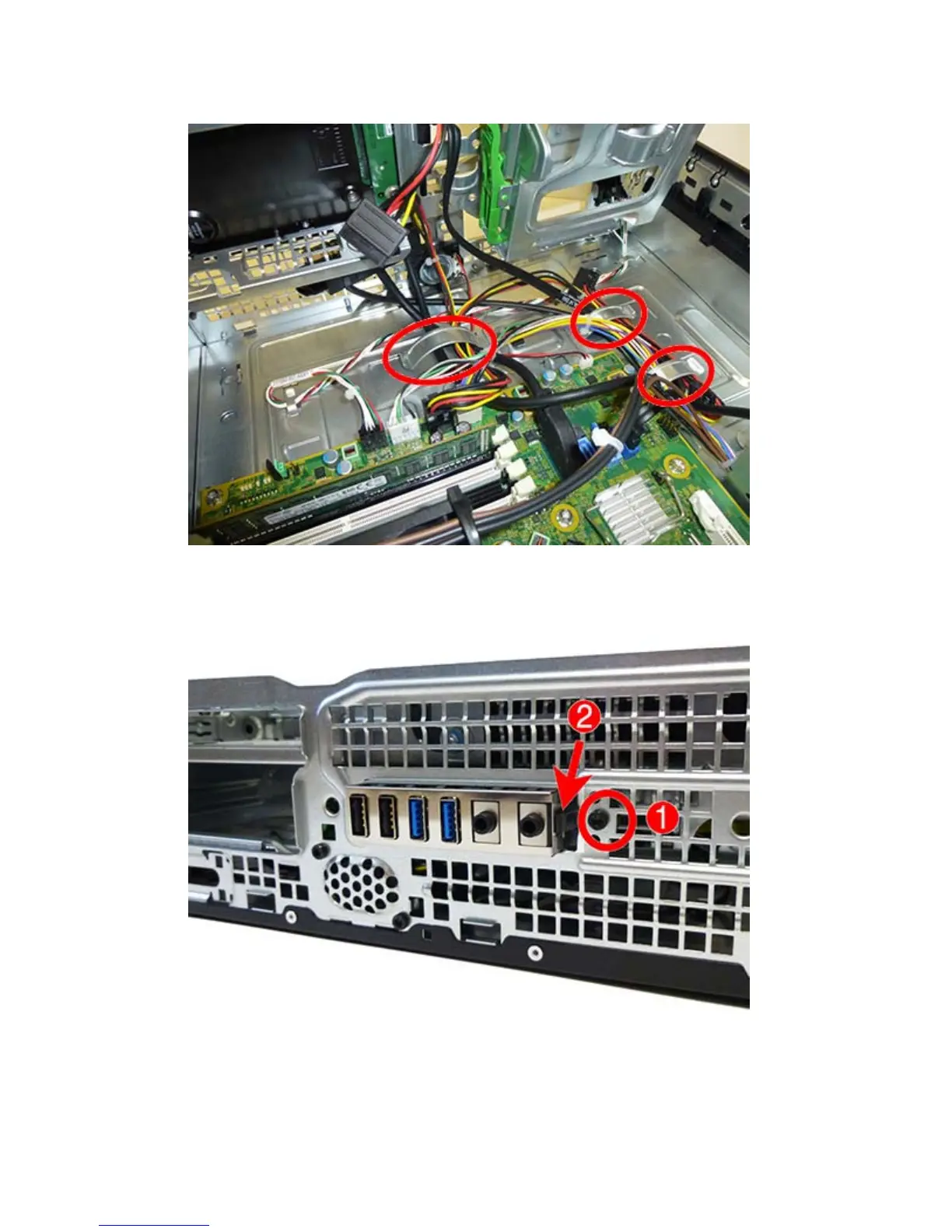

6. Remove the cables from the three clips built into the basepan.
7. Remove the Torx T15 screw (1) that secures the assembly to the front of the chassis.
8. Press the tab on the right side of the assembly (2), and then push the assembly into the
computer.
96 Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis

HP EliteDesk 705 G1 Specifications

General

Memory	Up to 32 GB DDR3 SDRAM
Processor	AMD A-Series APUs (A10, A8, A6, A4)
Storage	2TB HDD or 256GB SSD
Graphics	Integrated AMD Radeon Graphics (depending on APU)
Operating System	Windows 8.1
Form Factor	Small Form Factor
Audio	Realtek ALC221, High Definition Audio
Ports	USB 2.0, USB 3.0, VGA, DisplayPort
Expansion Slots	1 PCIe x1; 1 PCIe x16; 1 PCI
