Front I/O assembly
The front I/O assembly is attached to the front of the chassis. Push the assembly into the chassis to
remove.
1. Prepare the computer for disassembly (
Preparation for disassembly on page 66).
2. Remove the access panel (
Access panel on page 67).
3. Remove the front bezel (
Front bezel on page 67).
4. Rotate the drive cage to its upright position.

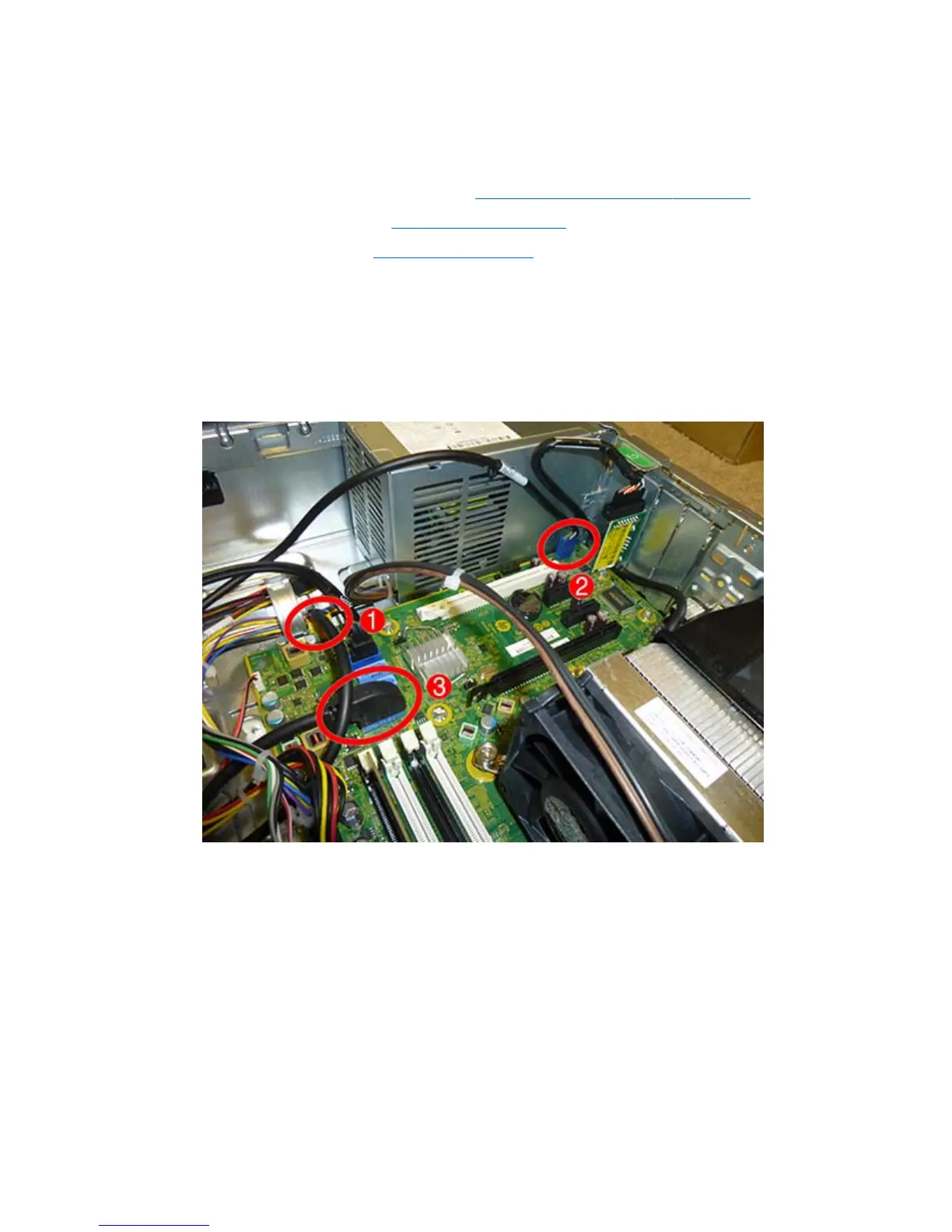

5. Disconnect the cables from the system board as follows:
●
(1) Yellow connector labeled FRONT_USB
●
(2) Blue connector labeled FRONT AUD
●
(3) Blue connector labeled FRONT_USB3.0
Front I/O assembly 95

HP EliteDesk 705 G1 Specifications

General

Memory	Up to 32 GB DDR3 SDRAM
Processor	AMD A-Series APUs (A10, A8, A6, A4)
Storage	2TB HDD or 256GB SSD
Graphics	Integrated AMD Radeon Graphics (depending on APU)
Operating System	Windows 8.1
Form Factor	Small Form Factor
Audio	Realtek ALC221, High Definition Audio
Ports	USB 2.0, USB 3.0, VGA, DisplayPort
Expansion Slots	1 PCIe x1; 1 PCIe x16; 1 PCI
