HP EliteDesk 705 G1 User Manual

Access panel
To access internal components, you must remove the access panel:
1. Prepare the computer for disassembly (
Preparation for disassembly on page 32)

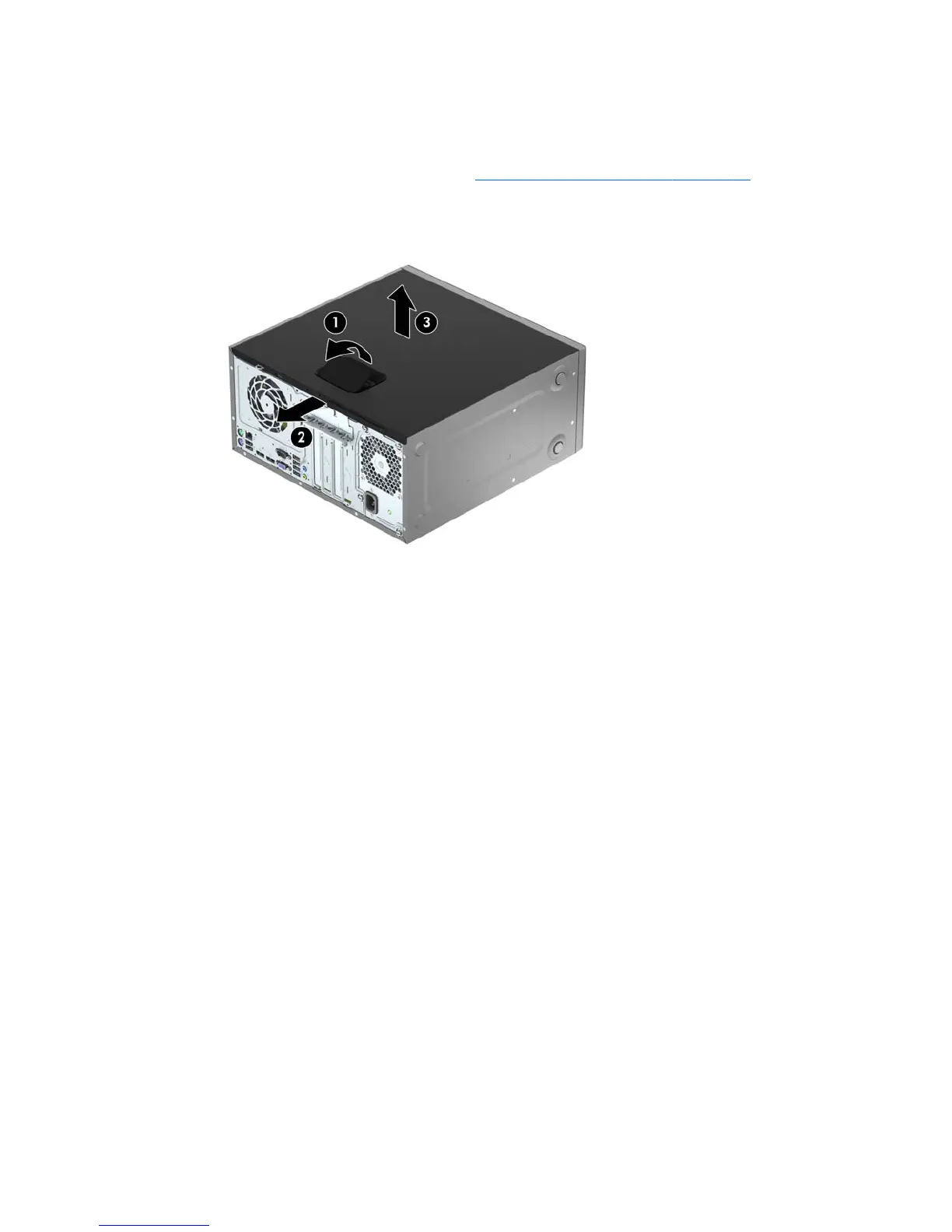

2. Lift up on the access panel handle (1), slide the computer back approximately 12 mm (1/2 inch)
(2), and then lift the access panel off the computer (3).
Access panel 33

HP EliteDesk 705 G1 Specifications

General

Memory	Up to 32 GB DDR3 SDRAM
Processor	AMD A-Series APUs (A10, A8, A6, A4)
Storage	2TB HDD or 256GB SSD
Graphics	Integrated AMD Radeon Graphics (depending on APU)
Operating System	Windows 8.1
Form Factor	Small Form Factor
Audio	Realtek ALC221, High Definition Audio
Ports	USB 2.0, USB 3.0, VGA, DisplayPort
Expansion Slots	1 PCIe x1; 1 PCIe x16; 1 PCI
