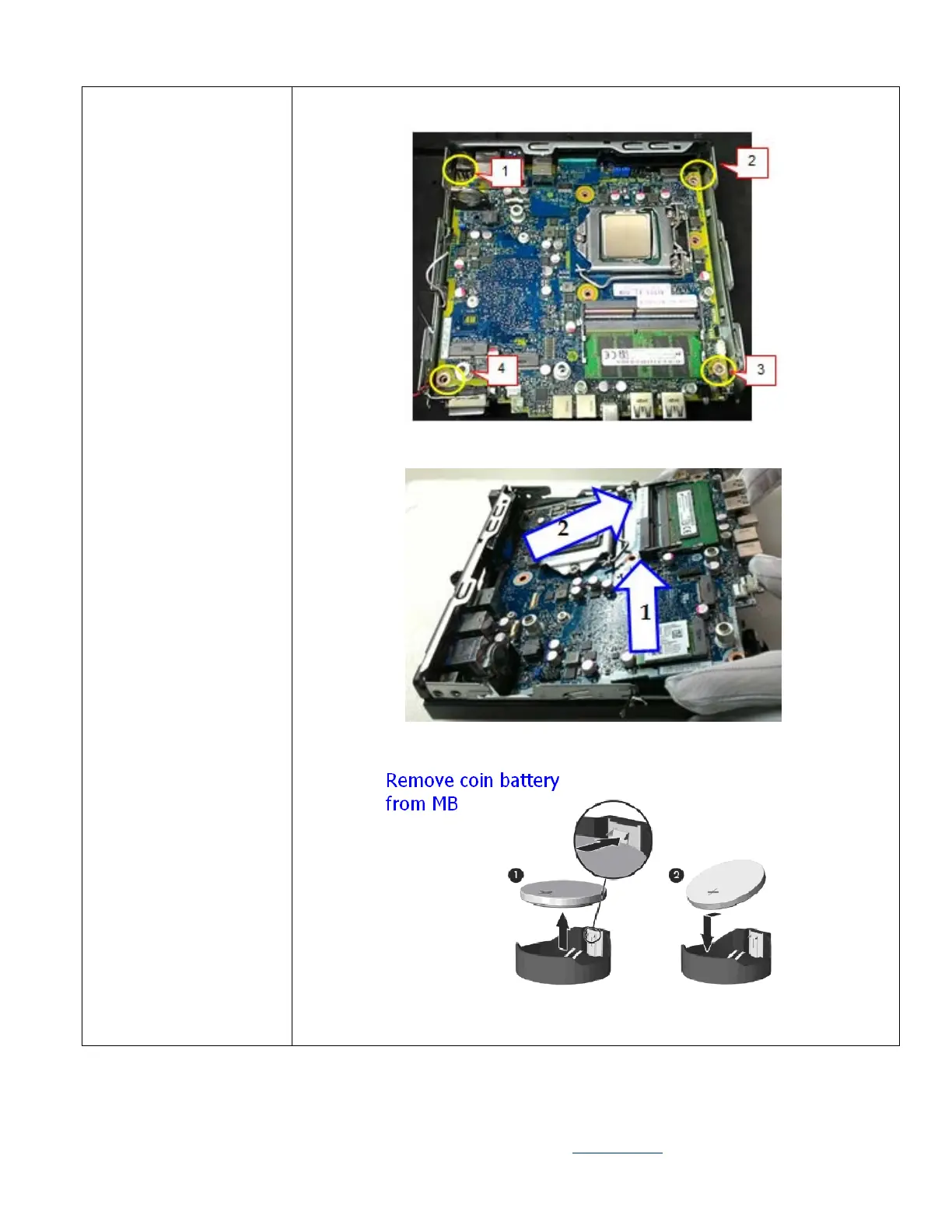

7. Remove M/B and battery
1
Release 4 screws by
order 4 to 1 to free
M/B from chassis as
photo1 shown
2
3
Follow the direction
to drag M/B out of
chassis as photo2
shown
Remove battery from
M/B by loosing the
clip outwards as
direction shown
