EL-MF877-00 Page 12
Template Revision B
PSG instructions for this template are available at EL-MF877-01

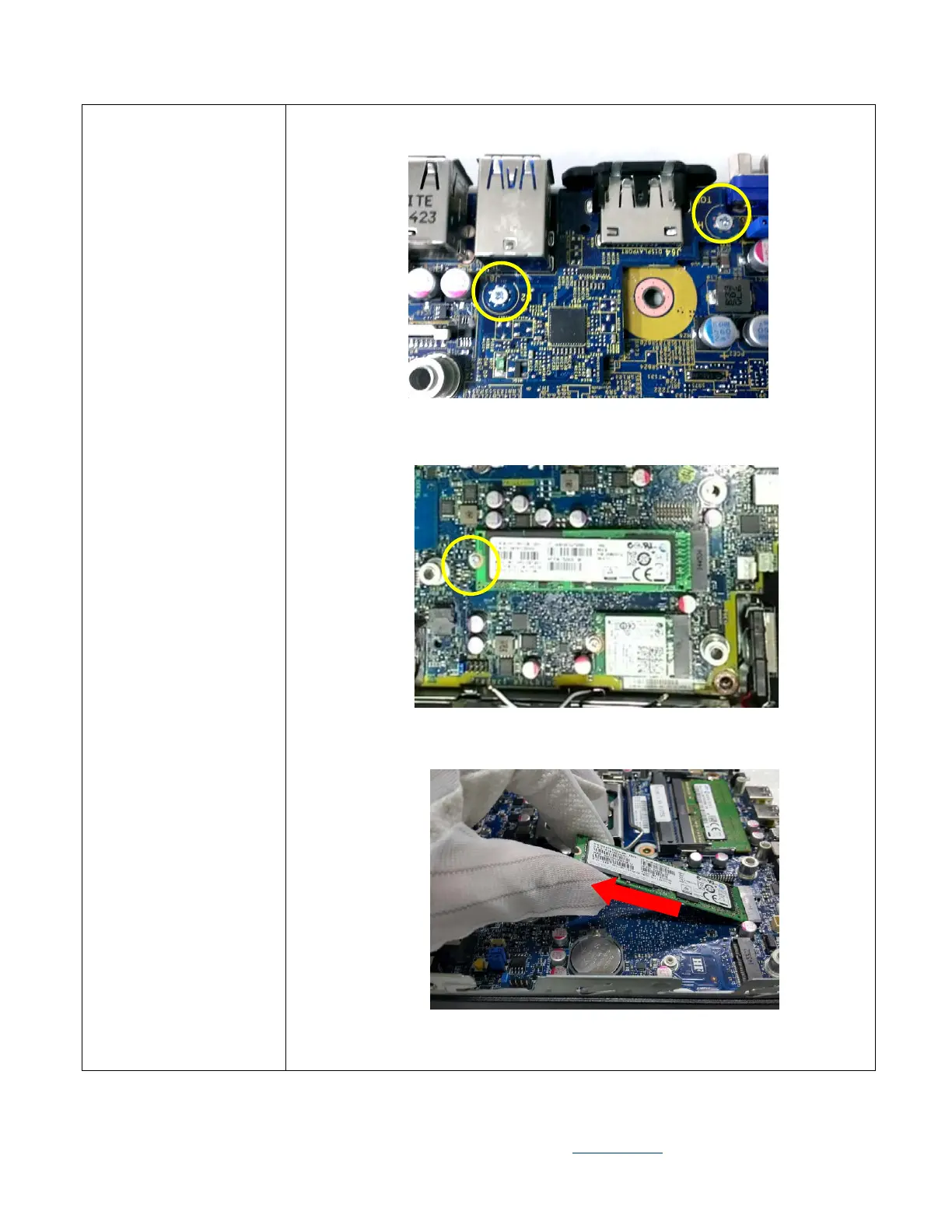

9. Remove Rear IO (HDMI/DP/SERIAL) card and M.2 card
1
Rear IO card
Release 2 screws
then remove Rear
IO card as photo1
shown
M.2 card
3
Release 1 screws
from M/B as photo2
shown
Remove M.2 (SSD)
card as photo3
shown
