HP EliteDesk 800 G2

EL-MF877-00 Page 5
Template Revision B
PSG instructions for this template are available at EL-MF877-01
3

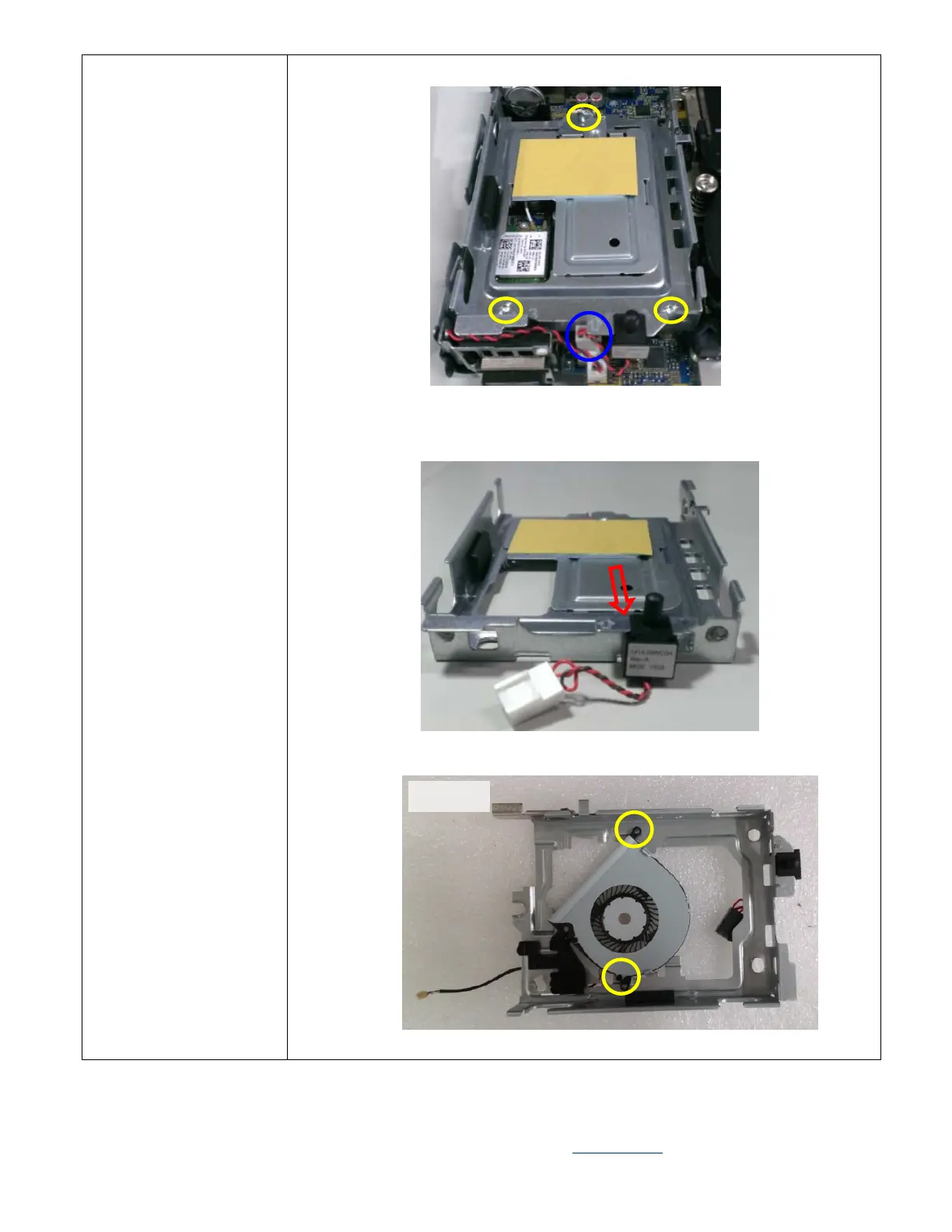

Release 3 screws of
HDD cage first then
remove hood sensor
cable from M/B as
photo3 shown
4
5.
Remove hood
sensor from HDD
cage. as photo4
shown
HDD FAN
( only Dolomite )
Release 2 screws of
HDD cage then turn
the hook to unlock
the HDD fan in HDD
cage as photo5
shown
Dolomite
